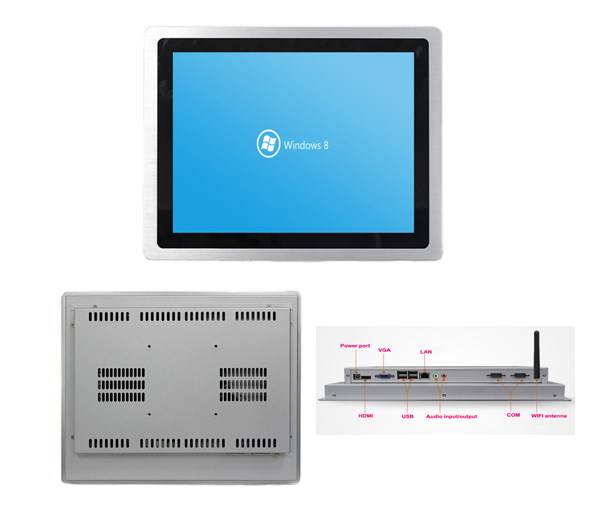

17inch industrial touch screen panel pc with Whole aluminum alloy casing

Click Here to copy , Send to a Friend

Product Description
1.Whole aluminum alloy casing, waterproof IP65 front panel
2. True flat seamless,3mm ultra -thin front panel
3.Slim and thin design,Support 7x24hours working
4.5-wire touchscreen and capacitive touchscreen option
5.High quality industrial LCD panel
--1000-1500nits High brightness option, direct sunlight readable.
6.Work temperatures -10°—60°
7.VGA+ DVI standard interface, HDMI option
8.Embedded/panel mount/card buckle/VESA holes installation
9.Multi-language,Support Windows/Linux OS

Model number YIPC-1702
LCD panel  Panel size 17inch
Resolution 1280×1024/60HZ
Aspect ratio 4:3
Panel  LED backlight
Brightness 400cd/m2(1000/1500cd/m2 option)
Contrast ratio 1000:1
Display color 16.7M
View angle H170; V160( 178 Full view angle option)
Pixel pitch 0.264mm
Response time  5ms
Life 50000h
PC configuration CPU Intel Celeron1037U,Dual core,1.8GHz
RAM 2GB DDR3, 4GB/8GB option
SDD 32GB SDD, 64GB/128GB/500GB option
Network card Integrated RTL8111E gigabit network card
Audio Integrated ALC662 Realtek audio chip
WIFI network Built-in WIFI
System Windows XP/ Win7/Win8 option
Touchscreen  5-wire resistive touchscreen (Capacitive touchscreen option)
Touch number >35million
Touch way Pressure sensing
touchscreen interface USB intergace(RS232 interface option)
Other Power supply  AC 100-240V, 50-60Hz, DC12V
Power Consumption  <40W
Work temperature -10-60
Storage temperature -20-60
Dimension 413.8×334.6×58mm
Casing  Whole aluminum alloy casing
Color Black/Silvery option
Interface 1xVGA,1xHDMI, 4xUSB, 2x COM,1xLAN,1xAudio output/input, 1x WIFI antenna
Installation Embedded/VESA holoes/Wall-mounted/desktop
Accessories Manual, Adapter, power cord,bracket, Emmbed Buckles
