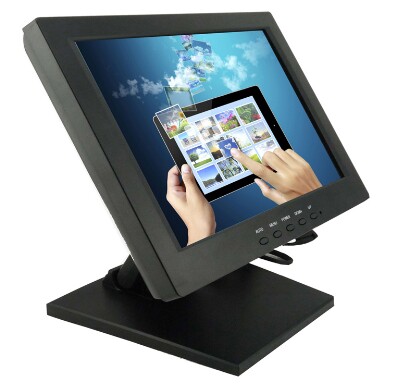

Model number

YT-0120

LCD screen

Panel size

12.1 inch TFT-LCD, 4:3

Standard Resolution

800*600, 1024X768option

Display  Colors

16.2M

Brightness

300cd/m2

Backlight

CCFL backlight

Response time

12ms

View angle

Horizontal:160°;Vertical:150°

Contrase ratio

400:1

Frequency

60~75Hz

Touchscreen

Touchscreen

4-wire resistive touchscreen(5-wire resistive touch, Capacitive,SAW,optional)

Duration

50000hours

touch validity

>1,000,000

Touch interface

USB or RS232 optional

Touch response time

2ms

Interface

Connector

VGA for video signal

USB (or RS232) for touch

Other

Setup (optional)

1) provide wall brackets for wall-mounting, VESA 75mm&100mm

2) provide stable mental base to support the monitor

OSD  control

AUTO,+,POWER,-,MENU

brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset

Power supply

External Power Supply:100 to 240V  (DC 12V/2.6A)

Power consumption

Max 30W

Operation system

Windows,Linux,Mac.

Operation Environment

Workable Temperature:-10 to 60°C

Storage temperature:-20 to 70°C

Operate relative humidity:20% to 80%;

storage relative humidity:10% to 90%

Certificate

CE, ROHS

Warranty

1 year,provide spare parts

Assessories

power cable,USB cable, VGA cable,Adapter, Drive and warranty card

Packing

Net weight

6.0 Kgs/pcs,include stable mental base

Gross weight

3Kgs/pcs,include stable mental base

Monitor size

299*242*43mm(not include base)

Each unit box size

350*310*144mm
