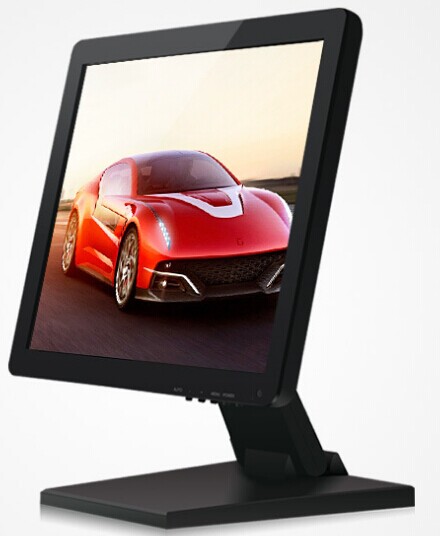

19inch LCD touchscreen monitor YT-1902
Model number |
YT-1902 |
LCD screen |
|
Panel size |
19 inch TFT-LCD, 4:3 |
Resolution |
1280*1024 |
Number of Colors |
16.7M |
Brightness |
500cd/m2 |
Backlight |
LED backlight |
Response time |
5ms |
View angle |
H80/80; V70/70 |
Contrase ratio |
1000:1 |
Frequency |
30~80KHz/60~75Hz |
Touchscreen |
|
Touchscreen |
4-wire resistive touchscreen(5-wire resistive touch, Capacitive,SAW,Infrared touch optional) |
Duration |
50000hours |
touch validity |
>35,000,000 |
Touch interface |
USB or RS232 optional |
Touch response time |
2ms |
Interface |
|
Connector |
VGA for video signal |
USB (or RS232) for touch |
|
Other |
|
Setup (optional) |
1) provide wall brackets for wall-mounting, VESA 75mm&100mm |
2) provide stable mental base to support the monitor |
|
OSD control |
AUTO,+,POWER,-,MENU |
brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset |
|
Power supply |
External Power Supply:100 to 240V (DC 12V) |
Power consumption |
Max 40W |
Operation system |
Windows,Linux,Mac. |
Operation Environment |
Workable Temperature:-10 to 60°C |
Storage temperature:-20 to 70°C |
|
Operate relative humidity:20% to 80%; |
|
storage relative humidity:10% to 90% |
|
Certificate |
CE, ROHS |
Warranty |
1 year,provide spare parts |
Assessories |
power cable,USB cable, VGA cable,Adapter, Drive and warranty card |
Packing |
|
Net weight |
6.0 Kgs/pcs,include stable mental base |
Gross weight |
6.5 Kgs/pcs,include stable mental base |
Monitor size |
427*378*28mm(not include base) |
Each unit box size |
537*142*467mm |
Package size |
4pcs in a carton,carton size: 585*545*480mm |
