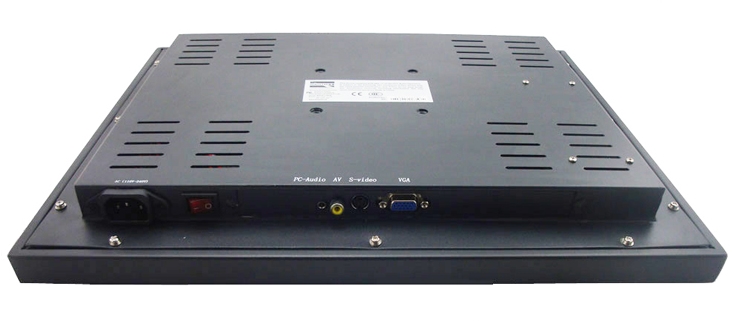

17inch Sunlight LCD monitor
Product Description
Feature:
17'' Chassis mount sunlight readable industrial monitor.
LED backlight enhanced, 1000 cd/m2 brightness.
Low power consumption.
Wide operational temperature A/D board, -20~+60 degree celsuis.
DVI, VGA and composite video inputs.
Ultra-low profile design, 45mm depth.
Detachable flanges for chassis mount.
Specification:
|
Model No. |
YTHB-1701 |
|
|
LCD panel |
Size/Aspect ratio |
17''/5:4 |
|
Pixel numbers |
1280(H)*1024(V) |
|
|
Brightness |
1000 cd/m2 |
|
|
Contrast Ratio |
1000:1 |
|
|
Viewing Angle |
170° (H)/160° (V) |
|
|
Colors |
16.7 M |
|
|
Input terminals |
Signal |
VGA, Composite Video, S-video |
|
Power plug |
100-240V AC |
|
|
OSD Control |
Menu/Select,Auto,Up,Down,Power |
|
|
Environments |
Temperature |
0°C to 60°C (Operating) |
|
-20°C to 70°C (Storage ) |
||
|
Humidity |
10% RH to 90% RH (Operating) |
|
|
10% RH to 90% RH (Storage) |
||
|
Power |
Input Voltage |
100~240V AC, 50/60Hz |
|
Operation |
60 watt |
|
|
Stand-by |
‹5 watt |
|
|
Weight |
N.W./G.W. |
5.0Kgs/6.0Kgs |
|
Mount |
VESA mount:100*100mm/Flanges |
|
|
Optional |
Built-in speakers |
|
|
Optical bonding |
||
