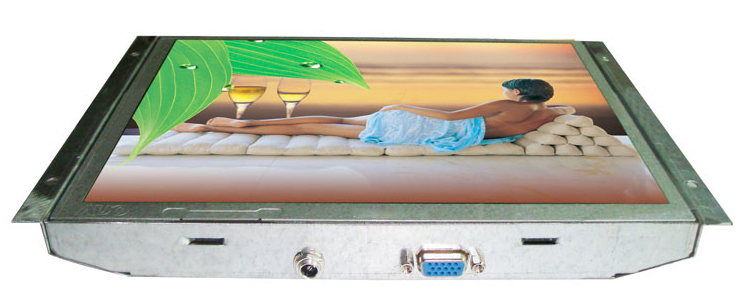

10.4inch Sunlight Readable Open frame monitor
Product Description
Feature:
10.4'' AUO/Mitsubishi/NEC TFT LCD screen
1000 cd/m2, light sensor for auto brightness adjustment
Long lifetime up to 70,000 hours
Wide operational temperature range industrial LCD controller board
High environmental performance
12V DC input, low power consumption
Minimum EMI emission
Touchscreen optional
Specification:
|
Model No. |
YTHB-P104 |
|
|
LCD panel |
Size/Aspect ratio |
10.4''/4:3 |
|
Pixel numbers |
800(H)*600(V) |
|
|
Brightness |
1000 cd/m2 |
|
|
Contrast Ratio |
500:1 |
|
|
Viewing Angle |
160° (H)/130° (V) |
|
|
Colors |
16.2 M |
|
|
Input terminals |
PC signal |
D-Sub15 pin*1 |
|
Power plug |
12 VDC jack |
|
|
OSD Control |
Menu/Select,Auto,Up,Down,Power |
|
|
Environments |
Temperature |
-20°C to 60°C (Operating) |
|
-30°C to 70°C (Storage ) |
||
|
Humidity |
10% RH to 90% RH (Operating) |
|
|
10% RH to 90% RH (Storage) |
||
|
Power |
Input Voltage |
12V DC |
|
Operation |
‹16 watt |
|
|
Stand-by |
‹5 watt |
|
|
Weight |
N.W./G.W. |
1.0Kgs/1.5Kgs |
|
Mount |
VESA mount:75*75mm/Flanges |
|
|
Optional |
Touch screen(Resistive,Capacitive) |
|
|
Built in speakers |
||
|
Optical bondings |
||
