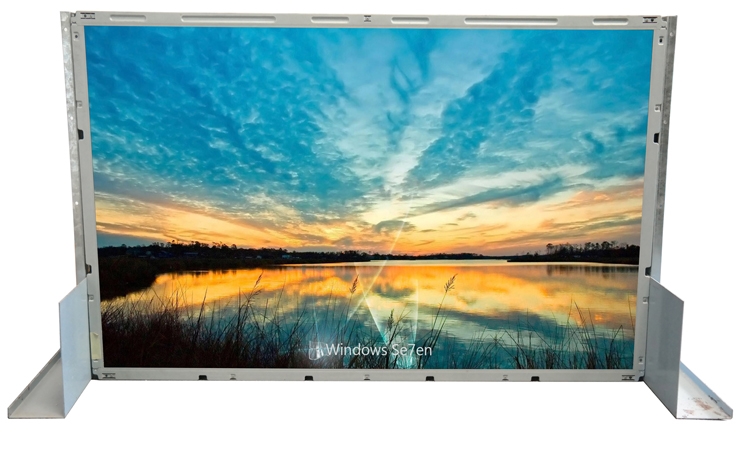

Model No.

YTHB-P4601

LCD panel

Size/Aspect ratio

46’’/16:9

Pixel numbers

1920(H)*1080(V)

Brightness

2000 cd/m2

Contrast Ratio

4000:1

Viewing Angle

178° (H)/178° (V)

Colors

16.7 M

Input terminals

Signal

VGA,DVI,HDMI (optional)

Power plug

100-240V AC

OSD Control

Menu/Select,Auto,Up,Down,Power

Environments

Temperature

0°C to 50°C (Operating)

-20°C  to 60°C (Storage )

Humidity

10% RH to 90% RH (Operating)

10% RH to 90% RH (Storage)

Power

Input Voltage

100~240V AC, 50/60Hz

Operation

300 watt

Stand-by

‹5 watt

Weight

N.W./G.W.

25Kgs/30Kgs

Mount/installation

VESA mount, Flanges

Optional

AG/AR  glass(Screen protected,double coating)
