24inch Sunlight Readable Open frame LCD monitor
Product Description
Feature:
24’’ Sunlight Readable Open Frame Monitor
2500nits Extreme Brightness
LED Backlight, Low Power Consumption
With Driver, Power Integrated at the Back
HDMI 1.4 Supported
Built-in Blackening Defect Free Device
Auto Brightness Adjustment
Open Frame Design, Ideal for Integre Kiosks
Vandal-proof AG Glass for Screen Protection optional
Specification:
Specification:
|
Model No. |
YTHB-P2401 |
|
|
LCD panel |
Size/Aspect ratio |
24''/16:10 |
|
Pixel numbers |
1920(H)*1200(V) |
|
|
Brightness |
2500 cd/m2 |
|
|
Contrast Ratio |
1200:1 |
|
|
Viewing Angle |
178° (H)/178° (V) |
|
|
Colors |
16.7 M |
|
|
Input terminals |
Signal |
HDMI (1.4), VGA |
|
Power plug |
100-240V AC |
|
|
OSD Control |
Menu/Select,Auto,Up,Down,Power |
|
|
Environments |
Temperature |
0°C to 40°C (Operating) |
|
-10°C to 50°C (Storage ) |
||
|
Humidity |
10% RH to 90% RH (Operating) |
|
|
10% RH to 90% RH (Storage) |
||
|
Power |
Input Voltage |
100~240V AC, 50/60Hz |
|
Operation |
230 watt |
|
|
Stand-by |
‹5 watt |
|
|
Weight |
N.W./G.W. |
8.5 Kgs/ 12Kgs |
|
Mount |
Flanges |
|
|
Optional |
AG Glass |
|

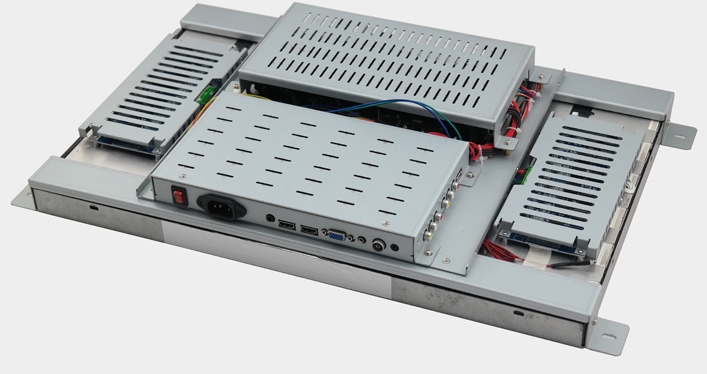

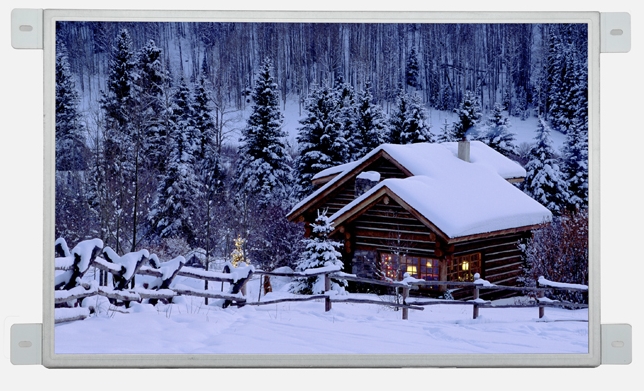

The pictures:
