IP65 front panel 21.5inch Industrial lcd monitor with whole aluminum alloy casing
Product Description
Feature:
1.Whole aluminum alloy casing, waterproof IP65 front panel
2. True flat seamless,3mm ultra -thin front panel
3.Slim and thin design,Support 7x24hours working
4.5-wire touchscreen and capacitive touchscreen option
5.High quality industrial LCD panel
6.1000-1500nits High brightness option, direct sunlight readable.
7.Work temperatures -10°—60°
8.DVI and HDMI interface option
9.Embedded/panel mount/card buckle/VESA holes installation
10.Multi-language,Support Windows/Linux OS
Specification:
Specification:
| Model number | YTID-2105 | |
| LCD panel | Panel size | 21.5inch |
| Resolution | 1920×1080/60HZ | |
| Aspect ratio | 16:10 | |
| Panel | LED backlight | |
| Brightness | 400cd/m2 | |
| Contrast ratio | 1000:1 | |
| Display color | 16.7M | |
| View angle | H178; V178 | |
| Response time | 5ms | |
| Life | 50000h | |
| Touchscreen Option |
Touchscreen | 5-wire resistive touchscreen (Capacitive/IR touchscreen option) |
| touchscreen interface | USB intergace(RS232 interface option) | |
| Other | Power supply | AC 180-240V, 50-60Hz, DC12V |
| Power Consumption | <35W | |
| Work temperature | -10℃-60℃ | |
| Casing | Aluminun alloy enclosure and high strength cold rolled shell | |
| Color | Black/Silver option | |
| Interface | 1xVGA,1xDVI, 1xUSB(for touchscreen), | |
| HDMI interface option | ||
| Dimension | 557x345x51.3mm | |
| Installation | Embedded/Wall-mounted/desktop | |
| Accessories | Manual, Adapter, power cord,buckles,bracket | |

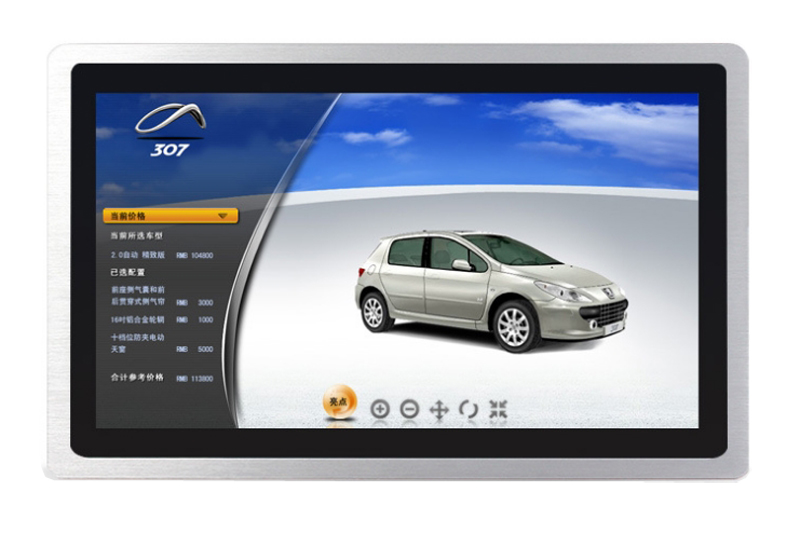

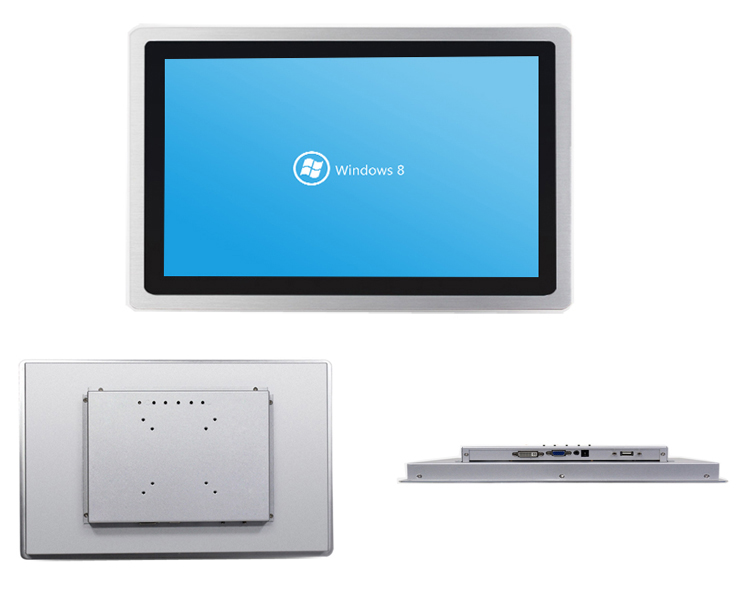

Picture:
