17inch industrial touch monitor with IP65 front panel and Slim and thin design

Click Here to copy , Send to a Friend
favorites

Product Description

Feature:
1.Whole aluminum alloy casing, waterproof IP65 front panel
2. True flat seamless,3mm ultra -thin front panel
3.Slim and thin design,Support 7x24hours working
4.5-wire touchscreen and capacitive touchscreen option
5.High quality industrial LCD panel
6.1000-1500nits High brightness option, direct sunlight readable.
7.Work temperatures -10°—60°
8.DVI and HDMI interface option
9.Embedded/panel mount/card buckle/VESA holes installation
10.Multi-language,Support Windows/Linux OS


Specification:
Model number YTID-1702
LCD panel  Panel size 17inch
Resolution 1280×1024/60HZ
Aspect ratio 4:3
Panel  LED backlight
Brightness 400cd/m2
Contrast ratio 1000:1
Display color 16.7M
View angle H170; V160
Pixel pitch 0.264mm
Response time  5ms
Life 50000h
Touchscreen
Option
Touchscreen  5-wire resistive touchscreen (Capacitive touchscreen option)
Touch number >35 million
Touch way Pressure sensing
touchscreen interface USB intergace(RS232 interface option)
Other Power supply  AC100-240V, 50-60Hz, DC12V
Power Consumption  <35W
Work temperature -10℃-60℃
Interface 1xVGA,1xDVI, 1xUSB(for touchscreen)
HDMI option
Dimension 413×344.6cm×51.3mm
Casing  Whole aluminum alloy casing
Installation Embedded/Wall-mounted/desktop
Accessories Manual, Adapter,power cord,buckles

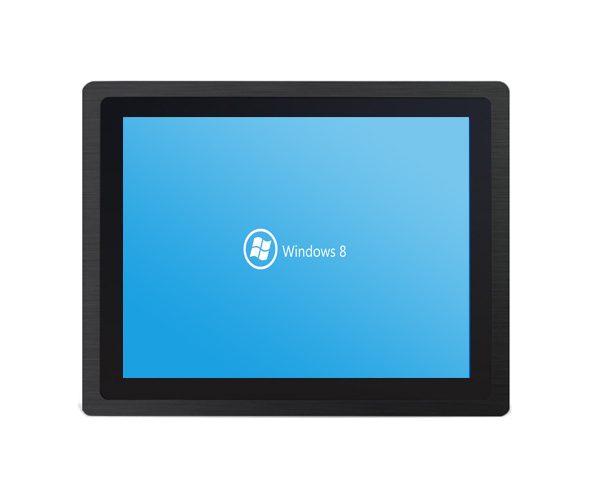

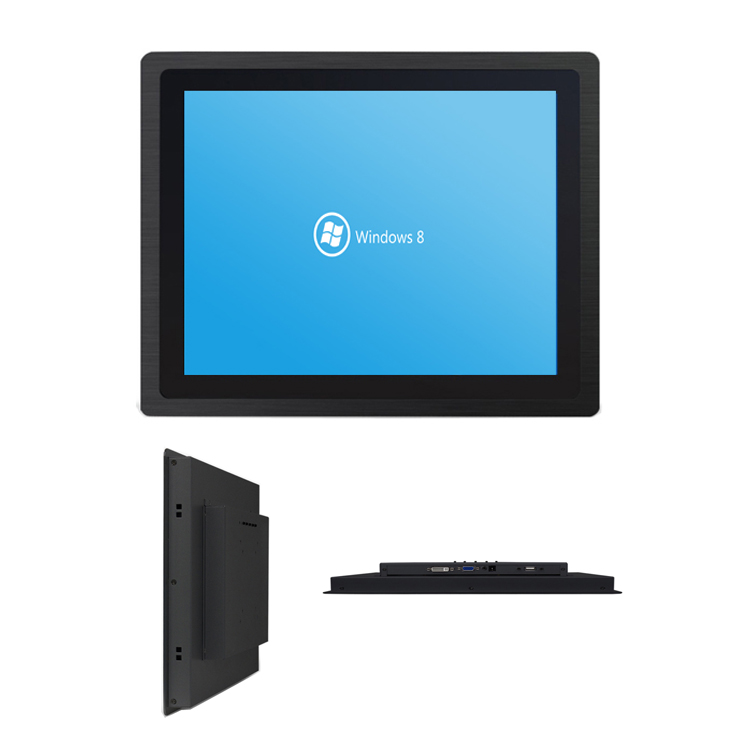

Picture:
