7inch/10.1inch/13.3inch digital signage with slim elegant and fashion.

Click Here to copy , Send to a Friend
favorites

Product Description

 Feature:
.Rounded corner design, slim, elegant and fashion.
· Aluminum bezel, wiredrawing treatment.
· Theft-proof lock for protecting memory card.
· AG or AR glass for protecting the LCD screen.
· Standard VESA holes and console holes for wall mounting.
· Single version support SD card, USB memory.
· Network version support internet and 3G net, can be group managed via net.
· Support all video, audio and picture formats.
· Optional Capacitive touchscreen.


Specification:
Model No. WMDS-0701 WMDS-1010 WMDS-1303
LCD panel Panel Size 7"(IPS panel) 10.1"(IPS panel) 13.3"
Pixel numbers  1280x800 1280x800 1366x768
Brightness  250cd/m2 220cd/m2 300 cd/m2
Contrast Ratio  400:1 500:1 500:1
Viewing Angle  178° (H)/178° (V) 178° (H)/178° (V) 178° (H)/178° (V)
Response Time 5ms 5ms 8ms
Colors  16.7M 16.7M 16.7 M
Life time above50000h above50000h above50000h
Standalone version Plug in SD card / U-disk to play the advertisement
Interface USB, SD card
Android version(network) CPU RK3288,  Quad core,2.0GHz
Memory(RAM) 2GB DDR3
Hard disk  flash(ROM) 8GB
Operation system Android 7.1 OS
Interface USB2.0/RJ45 /HDMI/SD
Network Support WlanWifi/RJ45/external 3G, Built-in 3G module option
Windows version CPU Intel Celeron1037U,Dual core,1.8GHz
RAM 2GB
Hard disk 32GB SDD, 64GB option
Operation Windows7/windows8
Network Support Wlan/Wifi/RJ45/external 3G,  Built-in 3G module option
Interface VGA/HDMI/USB/RJ45 interface
The clients can choose Single version or android version or windows version. In android version or windows version, digital signage can be add touchscreen.
Speakers 2x3W 2x3W 2x3W
Display formats Support formats Video: MPEG1, MEPG3, MEPG4, AVI, MP3
Photo: JPG, JEPG, BMP, PNG, GIF
Display mode Support full screen / multi-screen
Videos, photos, scroll texts auto detect, play and loop
Operating condition Temperature 0°C to 50°C (Operating)
-10°C to 60°C (Storage )
Humidity 10% RH to 90% RH (Operating)
10% RH to 90% RH (Storage)
Power Input Voltage 100-240V AC 100-240V AC 100-240V AC
Weight Net weight 0.7Kgs 1Kgs 2.5Kgs
Accessories manual, Adapter,power cord, wall mount bracket(option), Release information software(option)
Mount/installation Wall mount
Protection AG/AR/vandal-proof glass option
Touchscreen (optional) Capacitive  touch screen option

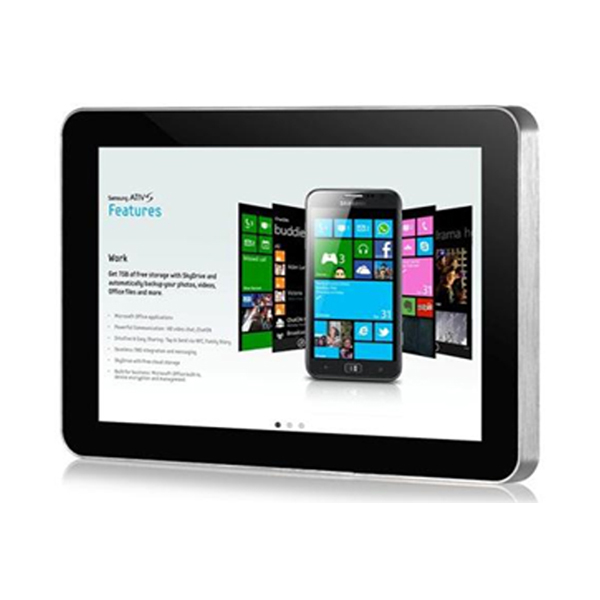

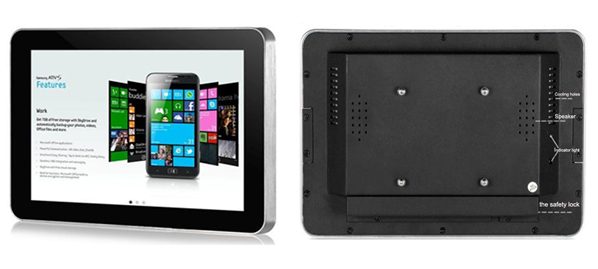

Picture:
