19inch open frame monitor with 1440x900 resolution

Click Here to copy , Send to a Friend
favorites

Product Description
Feature:
Industrial grade LED panel
5-wire Resistive /capacitive touchscreen option
VGA/DVI/USBinterface,HDMI option
Anti-electromagnetic interference
Can work in harsh environments
Black and white Metal casing option
Embedded/panel mount/card buckle/VESA holes installation
Multi-language,Support Windows/Linux OS


Available Sizes: 12.1" 15" 17" 19" 21.5" 22" option

Specification:
Model number YTOP-W1901
LCD panel  Panel size 19inch
Resolution 1440×900/60HZ
Aspect ratio 16:10
Panel  LED backlight
Brightness 400cd/m2(1000cd/m2 option)
Contrast ratio 1000:1
Display color 16.7M
View angle H170; V160
Response time  5ms
Life 50000h
Touchscreen Touchscreen  5-wire resistive touchscreen (Capacitive touchscreen option)
Touch number >3500 million
Touch way Pressure sensing
Induction strength 45g-250g
touchscreen interface USB intergace(RS232 interface option)
Other Power supply  AC 100-240V, 50-60Hz, DC12V
Power Consumption  ≤48W
Work temperature -10℃-60℃
Storge temperature -20℃-60℃
Language Multi-language
Size  463mm×310mm×55.5mm
Casing  Metal casing
Color Black and white option
Interface VGA×1,DVI×1,USBx1(for touchscreen )
HDMI interface option
Installation Embedded/VESA holes/Card buckles/Wall-mounted/desktop
Accessories Manual,VGA cable, power cable,Card buckles

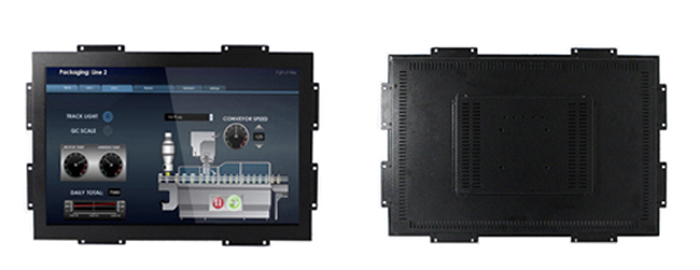

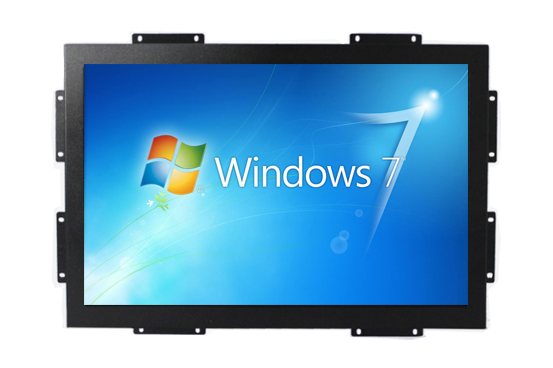

The picture:
