17inch open frame monitor with VGA+DVI+HDMI interface
Product Description
Feature:
Industrial grade LED panel
5-wire Resistive /capacitive touchscreen option
VGA/DVI/USBinterface,HDMI option
Anti-electromagnetic interference
Can work in harsh environments
Black and white Metal casing option
Embedded/panel mount/card buckle/VESA holes installation
Multi-language,Support Windows/Linux OS
Available Sizes: 12.1" 15" 17" 19" 21.5" 22" option
Specification:

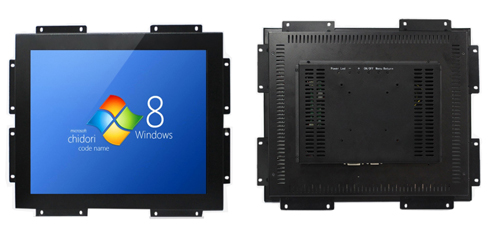

The picture:
Industrial grade LED panel
5-wire Resistive /capacitive touchscreen option
VGA/DVI/USBinterface,HDMI option
Anti-electromagnetic interference
Can work in harsh environments
Black and white Metal casing option
Embedded/panel mount/card buckle/VESA holes installation
Multi-language,Support Windows/Linux OS
Available Sizes: 12.1" 15" 17" 19" 21.5" 22" option
Specification:
| Model number | YTOP-1701 | |
| LCD panel | Panel size | 17inch |
| Resolution | 1024×768/60HZ | |
| Aspect ratio | 4:3 | |
| Panel | LED backlight | |
| Brightness | 400cd/m2(1000cd/m2 option) | |
| Contrast ratio | 1000:1 | |
| Display color | 16.7M | |
| View angle | H160; V150 | |
| Response time | 5ms | |
| Life | 50000h | |
| Touchscreen | Touchscreen | 5-wire resistive touchscreen (Capacitive touchscreen option) |
| Touch number | >3500 million | |
| Touch way | Pressure sensing | |
| touchscreen interface | USB intergace(RS232 interface option) | |
| Other | Power supply | AC 100-240V, 50-60Hz, DC12V/4A |
| Power Consumption | ≤40W | |
| Work temperature | -10℃-60℃ | |
| Storge temperature | -20℃-60℃ | |
| Language | Multi-language | |
| Size | 391.5mm×326.7mm×55.5mm | |
| Casing | Metal casing | |
| Color | Black and white option | |
| Interface | VGA×1,DVI×1,USBx1(for touchscreen ) | |
| HDMI interface option | ||
| Installation | Embedded/VESA holes/Card buckles/Wall-mounted/desktop | |
| Accessories | Manual,VGA cable, power cable,Card buckles | |

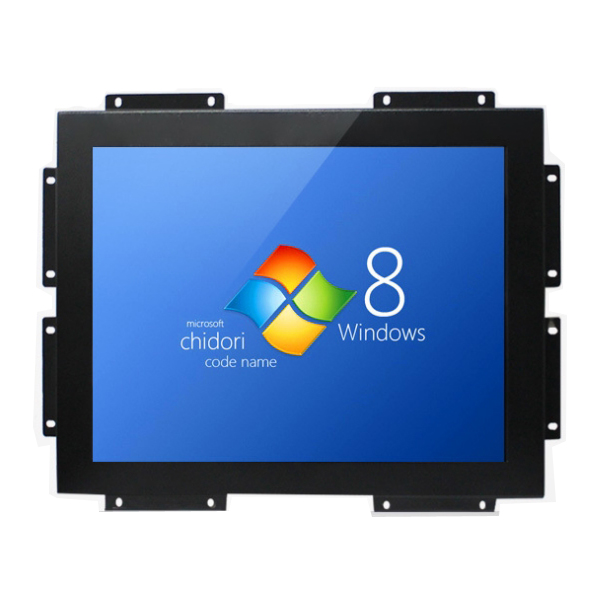

The picture:
