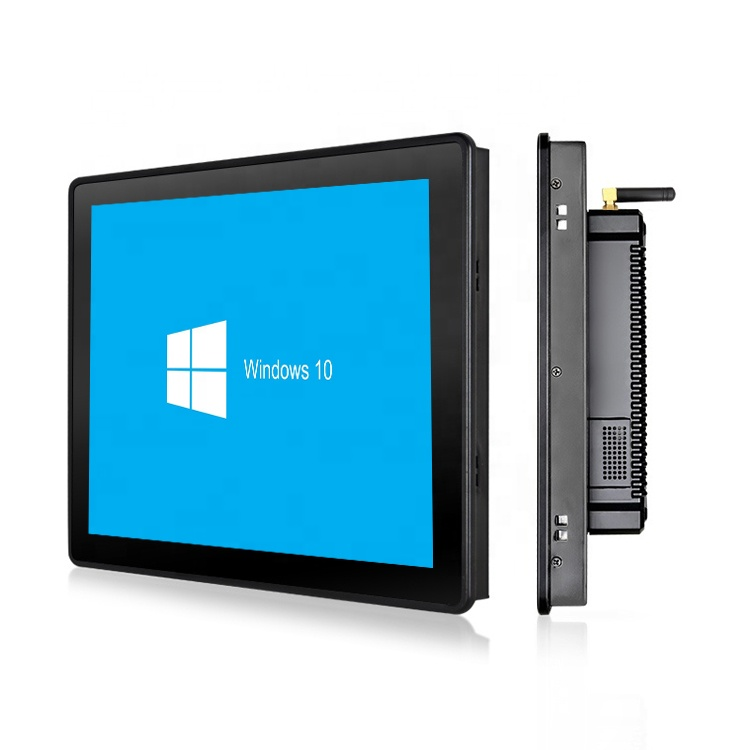

19inch industrial touchscreen panel pc

Click Here to copy , Send to a Friend
favorites

Product Description

Feature:

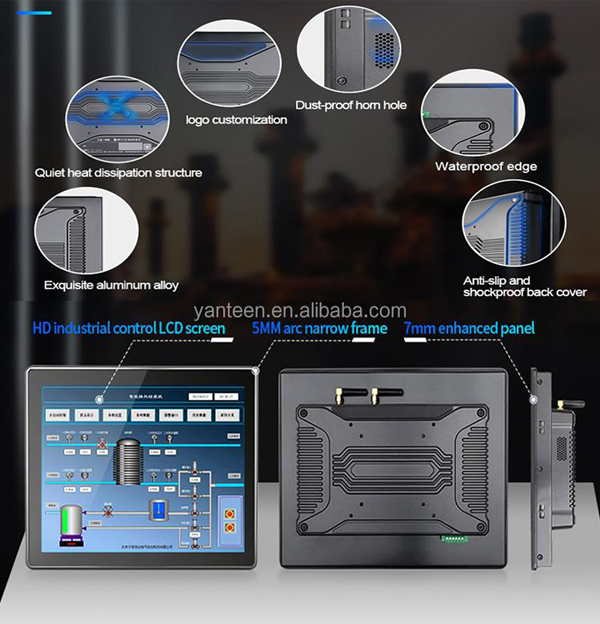

.Whole aluminum alloy casing, waterproof IP65 front panel
.Fanless and silent design,True flat seamless
.Industrial grade dust speaker holes
.Anti-slip shockproof back cover, waterproof edge strip
.High quality industrial LCD panel
.Intel J1900 CPU,Quad core,2.0GHz
.2GB DDR3 RAM,64GB SSD.
.Capacitive touchscreen/5-wire resistive touchscreen option
.Support Windows7/8/10 OS and Linux OS
.Can work in harsh environments
.Support 7x24 hours work
.High efficiency heat dissipation, Low power consumption, light weight
.Embedded/Metal buckles/VESA holes/Wall-mounted/Desktop installation
.Wide operational temperature range, -10°C to +60°C.
.High brightness 1000nits to 1500nits option, direct sunlight readable.


Available Sizes:10.1"/10.4"/11.6"/12"/15"/15.6"/17"/17.3"/19"/21.5"


Specification:
Model number  YTPC-R1902
 LCD panel   Panel size 19inch
 Resolution 1280x1024
 Aspect ratio  4:3
 Panel   LED backlight
 Brightness 400cd/m2
 Contrast ratio  1000:1
 Display color  16.7M
 View angle  H170; V160
 Response time   5ms
 Life  50000h
 Windows system  CPU  Intel J1900 CPU,Quad core,2.0GHz
 RAM  2GB DDR3, 4GB option
SDD  64GB, 128GB/256GB option
 Graphics card  Integrated HD Graphics card
 Network card  Integrated gigabit network card
 WIFI  2.4G(Dual-frequency 2.4G/5G option)
 3G/4G option  3G/4G module option
 Bluetooth option  BT4.0option
 Operating system   Support Windows XP/ Win7/Win8/Win10 OS ,Linux,Ubuntu OS
 Touchscreen  Option  Touchscreen   10 ponits Capacitive touchscreen ( 5-wire resistive touchscreen option)
 Touch number  >50million
 Touch way  Finger or Capacitive touch pen
 Other  Power supply   DC12V/5A, AC100-240V 50/60Hz
 Speaker  Built-in 2x2W speaker
 Impact resistance  10g acceleration, 11ms cycle
 Vibration resistance   5-19HZ/1.0mm amplitude, 19-200HZ/1.0g acceleration
 Anti-interference  EMI/EMC interference detection standards
 Work temperature  -10-60
 Storage temperature   -20-70
 Relative humidity  20%-95%(No condensation)
 Dimension  429.32x354.06x63.5mm
 Casing   Whole aluminum alloy casing
 Color  Black/silvery option

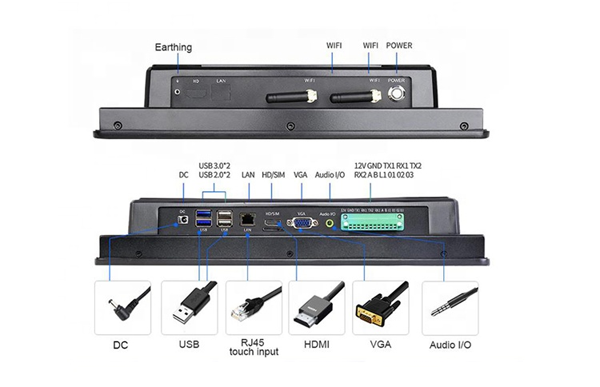

 Interface  1xVGA,1xHDMI, 2xUSB2.0,2xUSB3.0, 1xLAN,1xAudio   I/O,1xDC12V,1xWIFI,1xIndustrial terminals
 Installation  Embedded/Metal buckles/VESA holes/Wall-mounted/Desktop installation
 Accessories  Manual, adapter,power cable, metal buckles
