11.6inch industrial touchscreen panel pc

Click Here to copy , Send to a Friend
favorites

Product Description

Feature:
 .Whole aluminum alloy casing, waterproof IP65 front panel
.Fanless and silent design,True flat seamless
.Industrial grade dust speaker holes
.Anti-slip shockproof back cover, waterproof edge strip
.High quality industrial LCD panel
.Intel J1900 CPU,Quad core,2.0GHz
.2GB DDR3 RAM,64GB SSD.
.Capacitive touchscreen/5-wire resistive touchscreen option
.Support Windows7/8/10 OS and Linux OS
.Can work in harsh environments
.Support 7x24 hours work
.High efficiency heat dissipation, Low power consumption, light weight
.Embedded/Metal buckles/VESA holes/Wall-mounted/Desktop installation
.Wide operational temperature range, -10°C to +60°C.
.High brightness 1000nits to 1500nits option, direct sunlight readable.


Available Sizes:10.1"/10.4"/11.6"/12"/15"/15.6"/17"/17.3"/19"/21.5"


Specification:
Model number YTPC-R1106
LCD panel  Panel size 11.6inch
Resolution 1920x1080/60HZ
Aspect ratio 16:9
Panel  LED backlight
Brightness 300cd/m2
Contrast ratio 800:1
Display color 16.7M
View angle H170; V160
Response time  6.5ms
Life 50000h
Windows system CPU Intel J1900 CPU,Quad core,2.0GHz
RAM 2GB DDR3, 4GB option
SDD 64GB, 128GB/256GB option
Graphics card Integrated HD Graphics card
Network card Integrated gigabit network card
WIFI 2.4G(Dual-frequency 2.4G/5G option)
3G/4G option 3G/4G module option
Bluetooth option BT4.0option
Operating system  Support Windows XP/ Win7/Win8/Win10 OS ,Linux,Ubuntu OS
Touchscreen  Option  Touchscreen  10 ponits Capacitive touchscreen ( 5-wire resistive touchscreen option)
 Touch number  >50million
 Touch way Finger or Capacitive touch pen
Other Power supply  DC12V/5A
Speaker Built-in 2x2W speaker
Impact resistance 10g acceleration, 11ms cycle
Vibration resistance 5-19HZ/1.0mm amplitude, 19-200HZ/1.0g acceleration
Anti-interference EMI/EMC interference detection standards
Work temperature  -10-60
Storage temperature   -20-70
Relative humidity  20%-95%(No condensation)
Dimension 312x200x35mm
Casing  Whole aluminum alloy casing
Color Black/silvery option

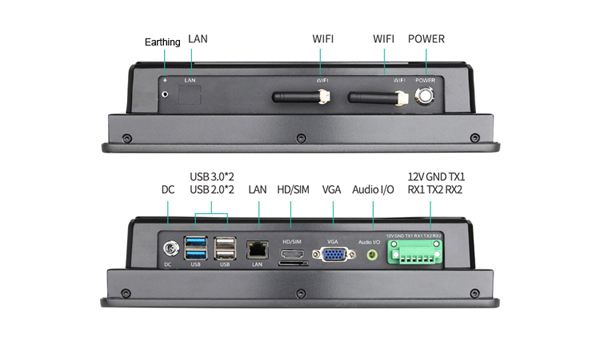

Interface 1xVGA,1xHDMI, 2xUSB2.0,2xUSB3.0, 1xLAN,1xAudiI/O,1xDC12V,1xWIFI,
1xIndustrial terminals
Installation Embedded/Metal buckles/VESA holes/Wall-mounted/Desktop installation
Accessories Manual, adapter,power cable, metal buckles
