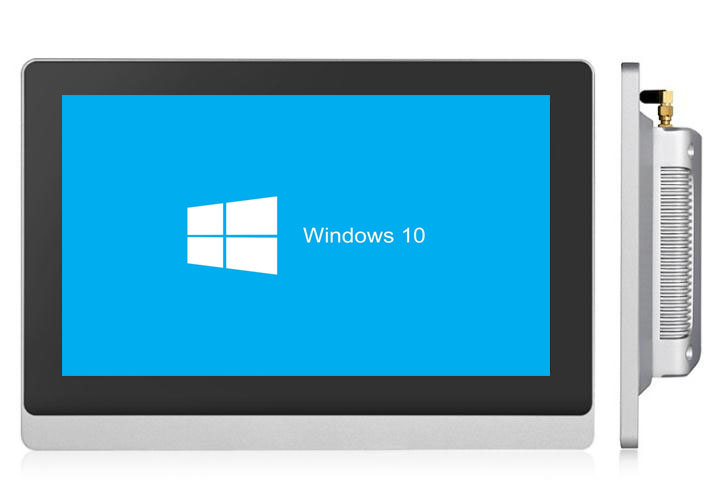

10.1inch industrial touchscreen panel pc with Whole aluminum alloy casing

Click Here to copy , Send to a Friend
favorites

Product Description
Feature:
.Whole aluminum alloy casing, Rounded ulta-narrow bezel
.The true flat seamlessflat front panel,  waterproof and dustproof IP65 front panel
.Anti-electromagnetic interference EMI/EMC, anti-vibration GB2423 standard
.High quality industrial LCD panel
.Intel J1900 CPU,Quad core,2.0GHz
.2GB DDR3 RAM,64GB SDD
.Capacitive  touchscreen/5-wire resistive touchscreen option
.Support Windows7/8/10 OS and Linux OS
.Can work in harsh environments
.Support 7x24hours work
.Embedded/VESA holes/Wall-mounted/Desktop installation
.Black/silver casing option
.Wide operational temperature range, -10°C to +60°C.
.High brightness 1000nits to 1500nits option, direct sunlight readable.

Available Sizes:10.1"/10.4"/11.6"/12"/15"/15.6"/17"/17.3"/19"/21.5"

Specification:
Model number YTPC-101C
LCD panel  Panel size 10.1inch
Resolution 1280x800
Aspect ratio 16:10
Panel  LED backlight
Brightness 300cd/m2
Contrast ratio 600:1
Display color 16.7M
View angle H170; V160
Response time  5ms
Backlight LED backlight
Life 50000h
Windows system CPU Intel J1900 CPU,Quad core,2.0GHz(Intetl i3/i5/i7 CPU option)
RAM 4GB DDR3, 8GB/16GB option
SDD 64GB, 128GB/256GB option
Graphics card Integrated HD Graphics card
Network card Integrated gigabit network card
Network  Support LAN/WIFI
Wifi 2.4G,   2.4G/5G double frequency option
Bluetooth option Bluetooth 4.0 option
Operating system  Support Windows XP/ Win7/Win10 OS
Touchscreen
Option		 Touchscreen  10 points Capacitive touchscreen( 5-wire resistive touchscreen option)
Touch number >50 million
Touch way Pressure sensing
Other Speaker Built-in 2x5W speaker
Power supply  DC12V/5A, AC100-240V  50/60Hz
Power Consumption  <20W
Work temperature -10-60
Storage temperature  -20-70
Relative humidity 20%-95%(No condensation)
Casing  Whole aluminum alloy casing
Color Silvery/Black option
Interface 1xVGA,1xHDMI, 1xLAN,2xUSB2.0, 2xCOM,1xAudio I/O,1xDC12V,1xWIFI
Installation Embedded/VESA holes/Wall-mounted/Desktop installation
Accessories Manual, adapter,power cable, wall-mounted bracket option
