12inch industrial touchscreen panel pc with 3mm ultra -thin front frame

Click Here to copy , Send to a Friend

Product Description

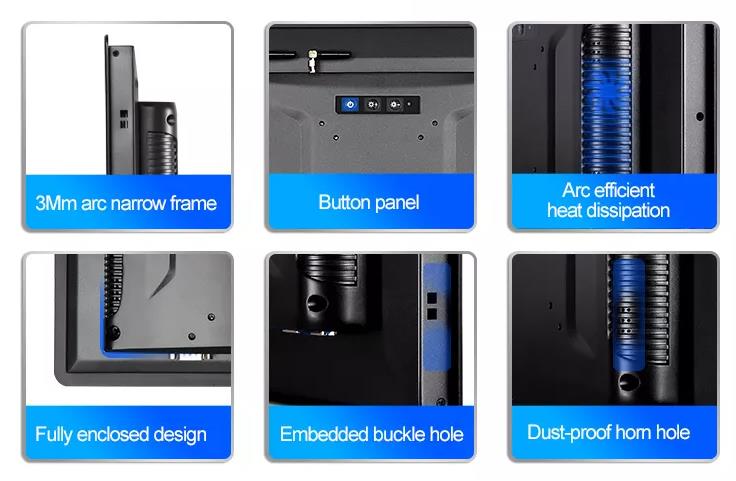

.Whole aluminum alloy casing, waterproof IP65 front panel

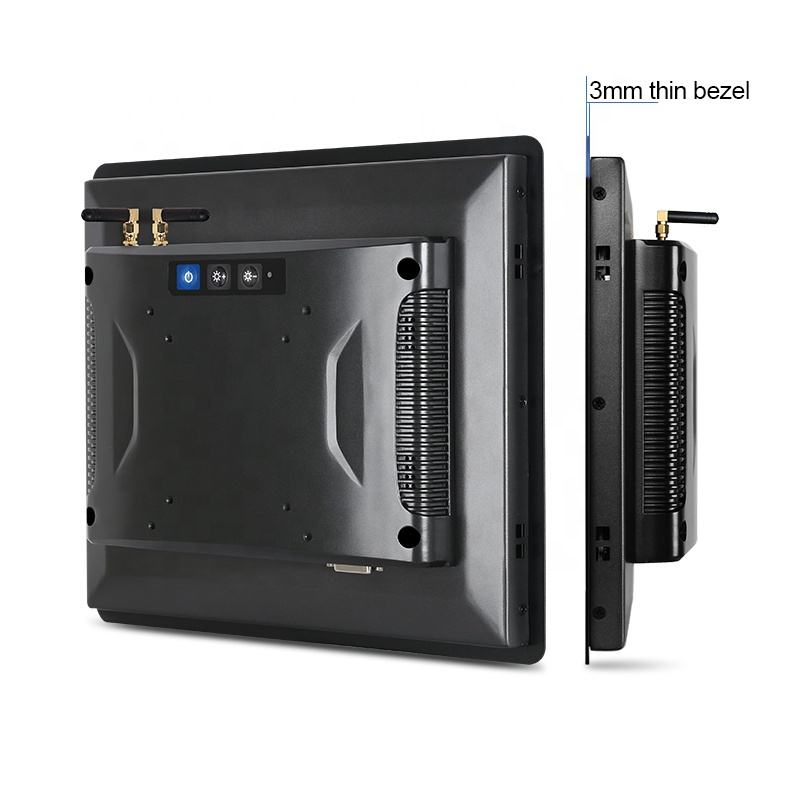

.True flat seamless,3mm ultra -thin front frame
.High efficiency heat dissipation, anti-interference, anti-corrosion, light weight
.Fully enclosed design, dustproof of the whole machine
.Industrial grade dust proof and waterproof speaker
.The design of circular arc heat dissipation structure
.High quality industrial LCD panel
.Intel J1900 CPU,Quad core,2.0GHz
.Capacitive  touchscreen/5-wire resistive touchscreen option
.Support Windows7/8/10 OS and Linux OS
.Can work in harsh environments
.Embedded/Metal buckles/VESA holes/Wall-mounted/Desktop installation
.Wide operational temperature range, -10°C to +60°C.
.High brightness 1000nits to 1500nits option, direct sunlight readable.
.Designed for industrial automation, industrial control systems, outdoor kiosk etc.

Available Sizes:10.1"/10.4"/11.6"/12"/15"/15.6"/17"/17.3"/19"/21.5"/23.8"

Model number YTPC-1201
LCD panel  Panel size 12inch
Resolution 1024x768
Aspect ratio 4:3
Panel  LED backlight
Brightness 350cd/m2
Contrast ratio 800:1
Display color 16.7M
View angle H170; V160
Response time  5ms
Backlight LED backlight
Life 50000h
Windows system CPU Intel J1900 CPU,Quad core,2.0GHz
RAM 2GB DDR3, 4GB option
SDD 64GB, 128GB/500GB option
Graphics card Integrated HD Graphics card
Network card Integrated gigabit network card
Network  Support LAN/WIFI
Wifi 2.4G,   2.4G/5G double frequency option
Bluetooth option Bluetooth 4.0 option
Operating system  Support Windows XP/ Win7/Win10 OS
Touchscreen  10 points Capacitive touchscreen( 5-wire resistive touchscreen option)
Touch number >50 million
Touch way Pressure sensing
Other Speaker Built-in 2x5W speaker
Power supply  DC12V/5A, AC100-240V  50/60Hz
Power Consumption  <25W
Work temperature -10-60
Storage temperature  -20-70
Relative humidity 20%-95%(No condensation)
Casing  Whole aluminum alloy casing
Color Silvery/Black option
Interface 1xVGA,1xHDMI, 1xLAN,2xUSB2.0, 2xUSB3.0,2xCOM,1xAudio I/O,1xDC12V,1xWIFI
Installation Embedded/Metal buckles/VESA holes/Wall-mounted/Desktop installation
Accessories Manual, adapter,power cable, Metal buckles
