10.4inch industrial touchscreen panel pc with Whole aluminum alloy casing
Product Description
Feature:
.Whole aluminum alloy casing, waterproof IP65 front panel

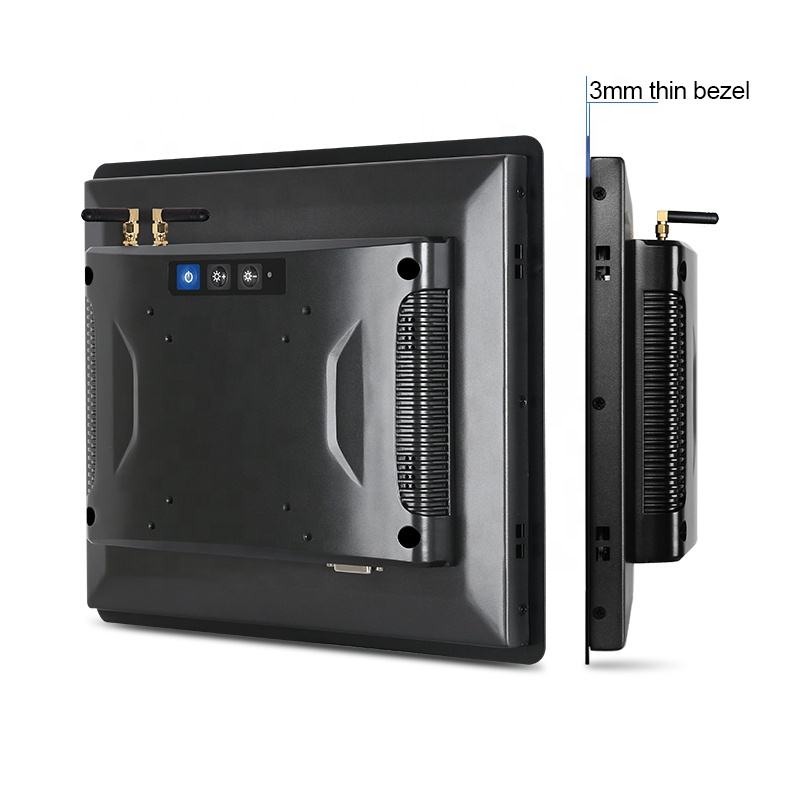

.True flat seamless,3mm ultra -thin front frame
.High efficiency heat dissipation, anti-interference, anti-corrosion, light weight
.Fully enclosed design, dustproof of the whole machine
.Industrial grade dust proof and waterproof speaker

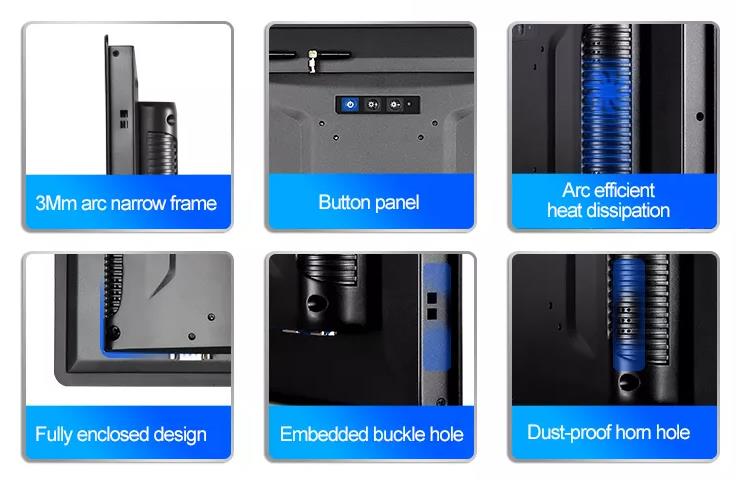

.The design of circular arc heat dissipation structure
.High quality industrial LCD panel
.Intel J1900 CPU,Quad core,2.0GHz
.2GB DDR3 RAM,32GB SSD.
.Capacitive touchscreen/5-wire resistive touchscreen option
.Support Windows7/8/10 OS and Linux OS
.Can work in harsh environments
.Embedded/Metal buckles/VESA holes/Wall-mounted/Desktop installation
.Wide operational temperature range, -10°C to +60°C.
.High brightness 1000nits to 1500nits option, direct sunlight readable.
.Designed for industrial automation, industrial control systems, outdoor kiosk etc.
Available Sizes:10.1"/10.4"/11.6"/12"/15"/15.6"/17"/17.3"/19"/21.5"/23.8"
Specification:
Pictures:
Available Sizes:10.1"/10.4"/11.6"/12"/15"/15.6"/17"/17.3"/19"/21.5"/23.8"
Specification:
Model number | YTPC-104 | |
LCD panel | Panel size | 10.4inch |
Resolution | 1024x768 | |
Aspect ratio | 4:3 | |
Panel | LED backlight | |
Brightness | 350cd/m2 | |
Contrast ratio | 800:1 | |
Display color | 16.7M | |
View angle | H170; V160 | |
Response time | 5ms | |
Backlight | LED backlight | |
Life | 50000h | |
Windows system | CPU | Intel J1900 CPU,Quad core,2.0GHz |
RAM | 2GB DDR3, 4GB option | |
SDD | 64GB, 128GB/500GB option | |
Graphics card | Integrated HD Graphics card | |
Network card | Integrated gigabit network card | |
Network | Support LAN/WIFI | |
Wifi | 2.4G, 2.4G/5G double frequency option | |
Bluetooth option | Bluetooth 4.0 option | |
Operating system | Support Windows XP/ Win7/Win10 OS | |
Touchscreen Option |
Touchscreen | 10 points Capacitive touchscreen( 5-wire resistive touchscreen option) |
Touch number | >50 million | |
Touch way | Pressure sensing | |
Other | Speaker | Built-in 2x5W speaker |
Power supply | DC12V/5A, AC100-240V 50/60Hz | |
Power Consumption | <25W | |
Work temperature | -10-60 | |
Storage temperature | -20-70 | |
Relative humidity | 20%-95%(No condensation) | |
Casing | Whole aluminum alloy casing | |
Color | Silvery/Black option | |
Interface | 1xVGA,1xHDMI, 1xLAN,2xUSB2.0, 2xUSB3.0,2xCOM,1xAudio I/O,1xDC12V,1xWIFI | |
Installation | Embedded/Metal buckles/VESA holes/Wall-mounted/Desktop installation | |
Accessories | Manual, adapter,power cable, Metal buckles |

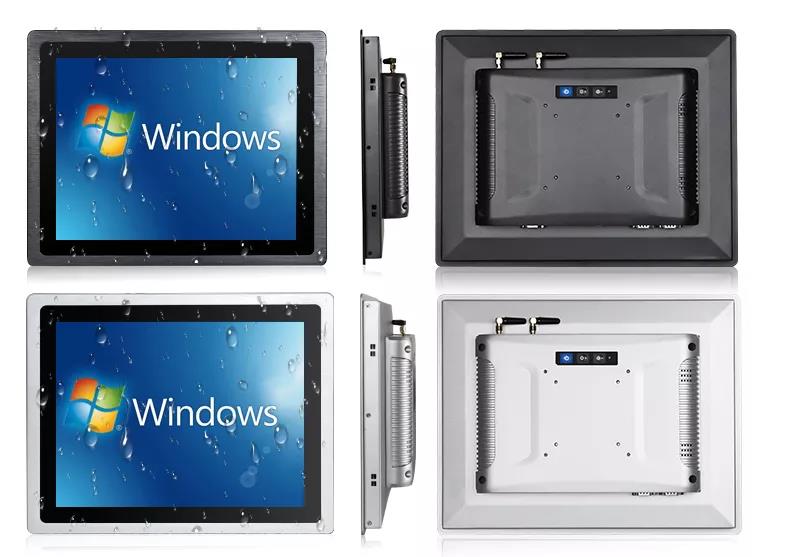

Pictures:
