Widescreen 12.1inch industrial touch screen monitor with 3mm ultra -thin front frame

Click Here to copy , Send to a Friend
favorites

Product Description
 Feature:
.Whole aluminum alloy casing,waterproof IP65 front panel
.True flat seamless,3mm ultra -thin front frame
.Slim and thin design,Support 7x24hours working
.Fully enclosed design, dustproof for the whole machine
.5-wire touchscreen and capacitive touchscreen option
.High quality industrial LCD panel,Industrial grade components
.Work temperatures -10° to 60°
.VGA/HDMI/DVI/Audio I/O interface
.Embedded/panel mount/card buckle/VESA holes installation
.Multi-language,Support Windows/Linux OS
.1000-1500nits High brightness option, direct sunlight readable.
.Anti-vibration, anti-electromagnetic interference, anti-surge, lightning protection


Available size:
8"/10.1"/10.4"/11.6"/12"/13.3"/15"/15.6"/17"/17.3"/19"/21.5"/23.8"option


Specification:
Model number YTID-W1201
LCD panel  Panel size 12.1inch
Resolution 1280x800
Aspect ratio 16:10
Brightness 300cd/m2
Contrast ratio 700:1
Display color 16.7M
View angle H170; V160
Response time  5ms
Backlight LED backlight
Life >50000h
Touchscreen
Option
Touchscreen  Capacitive touchscreen( 5-wire resistive touchscreen option)
Touch number >50 million
Touch way Pressure sensing
Touchscreen interface RJ45 interface
Other Power supply  DC12-24V/4A, AC100-240V/50-60Hz,
Power Consumption  <25W
Work temperature -10-60
Environment humidity 10%-90%(No condensation)
Language Multi-language
Casing  Whole aluminum alloy casing
Interface 1xVGA,1xDVI, 1xHDMI,1xAudio I/O,1xRJ45(for touchscreen),1xDC power
Installation Embedded/Panel mount/VESA holes/Metal buckles installation
Accessories Manual,Adapter, Power cord,VGA cable,Metal buckles

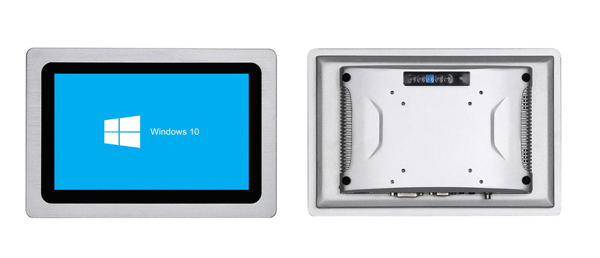

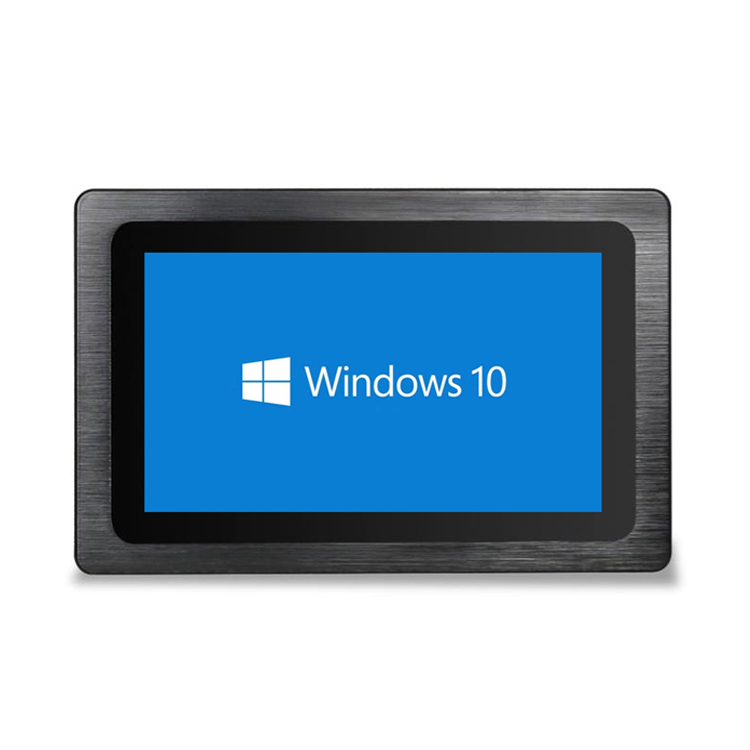

Pictures:
