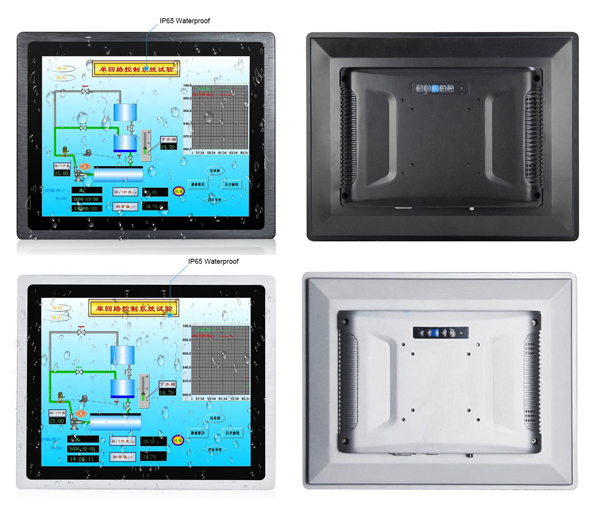

.Whole aluminum alloy casing,waterproof IP65 front panel

.True flat seamless,3mm ultra -thin front frame

.Slim and thin design,Support 7x24hours working

.Fully enclosed design, dustproof for the whole machine

.5-wire touchscreen and capacitive touchscreen option

.High quality industrial LCD panel,Industrial grade components

.Work temperatures -10° to 60°

.VGA/HDMI/DVI/Audio I/O interface

.Embedded/panel mount/card buckle/VESA holes installation

.Multi-language,Support Windows/Linux OS

.1000-1500nits High brightness option, direct sunlight readable.

.Anti-vibration, anti-electromagnetic interference, anti-surge, lightning protection


Available size: 8"/10.1"/10.4"/11.6"/12"/13.3"/15"/15.6"/17"/17.3"/19"/21.5"/23.8"option


Specification:

Model number		YTID-1201
LCD panel	Panel size	12inch
	Resolution	1024×768
	Aspect ratio	4:3
	Brightness	300cd/m2
	Contrast ratio	800:1
	Display color	16.7M
	View angle	H170; V160
	Pixel pitch	0.264mm
	Response time	5ms
	Backlight	LED backlight
	Life	>50000h
Touchscreen Option	Touchscreen	5-wire resistive touchscreen (Capacitive touchscreen option)
	Touch number	>35 million
	Touch way	Pressure sensing
	Touchscreen interface	RJ45 interface
Other	Power supply	DC12-24V/4A, AC100-240V/50-60Hz,
	Power Consumption	<25W
	Work temperature	-10 to 60
	Environment humidity	10%-90%(No condensation)
	Language	Multi-language
	Dimension	319×257×56.5mm
	Casing	Whole aluminum alloy casing
	Interface	1xVGA,1xDVI, 1xHDMI,1xAudio I/O,1xRJ45(for touchscreen),1xDC power

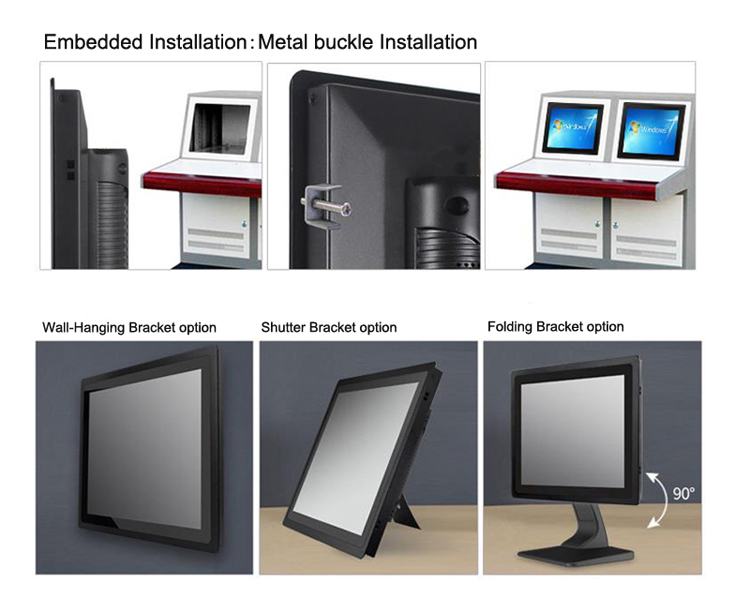

	Installation	Embedded/Panel mount/VESA holes/Metal buckles/Wall-mounted installation
	Accessories	Manual,Adapter, Power cord,VGA cable,Metal buckles

Pictures:
