11.6inch industrial touch screen monitor with VGA/HDMI/DVI/Audio I/O interface

Click Here to copy , Send to a Friend
favorites

Product Description
 Feature:

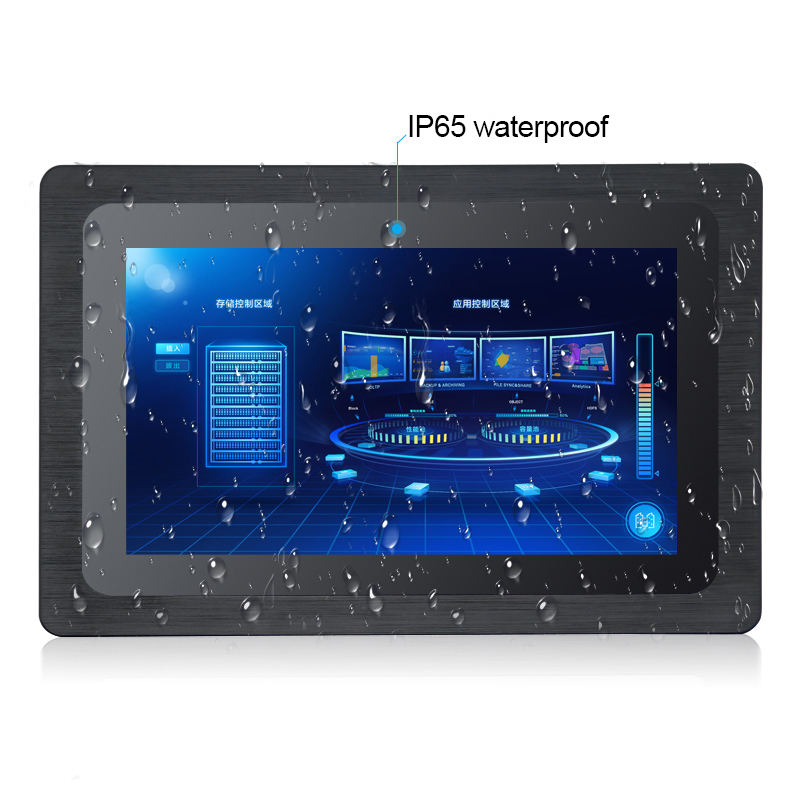

.Whole aluminum alloy casing,waterproof IP65 front panel
.True flat seamless,3mm ultra -thin front frame
.Slim and thin design,Support 7x24hours working
.Fully enclosed design, dustproof for the whole machine
.5-wire touchscreen and capacitive touchscreen option
.High quality industrial LCD panel,Industrial grade components
.Work temperatures -10° to 60°
.VGA/HDMI/DVI/Audio I/O interface
.Embedded/panel mount/card buckle/VESA holes installation
.Multi-language,Support Windows/Linux OS
.1000-1500nits High brightness option, direct sunlight readable.
.Anti-vibration, anti-electromagnetic interference, anti-surge, lightning protection


Available size: 8"/10.1"/10.4"/11.6"/12"/13.3"/15"/15.6"/17"/17.3"/19"/21.5"/23.8"option


Specification:
Model number YTID-1106
LCD panel  Panel size 11.6inch
Resolution 1920×1080/60HZ
Aspect ratio 16:9
Brightness 400cd/m2
Contrast ratio 1000:1
Display color 16.7M
View angle H170; V160
Pixel pitch 0.264mm
Response time  5ms
Backlight LED backlight
Life >50000h
Touchscreen
Option
Touchscreen  5-wire resistive touchscreen (Capacitive touchscreen option)
Touch number >35 million
Touch way Pressure sensing
Touchscreen interface RJ45 interface
Other Power supply  DC12-24V/4A, AC100-240V/50-60Hz,
Power Consumption  <25W
Work temperature -10 to 60
Environment humidity 10%-90%(No condensation)
Language Multi-language
Dimension 323.7×218.5×51.5mm
Casing  Whole aluminum alloy casing
Interface 1xVGA,1xDVI, 1xHDMI,1xAudio I/O,1xRJ45(for touchscreen),1xDC power
Installation Embedded/Panel mount/VESA holes/Metal buckles/Wall-mounted installation
Accessories Manual,Adapter, Power cord,VGA cable,Metal buckles

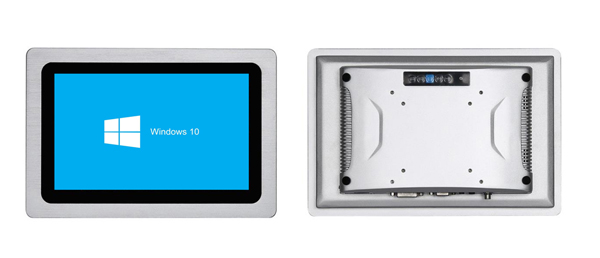

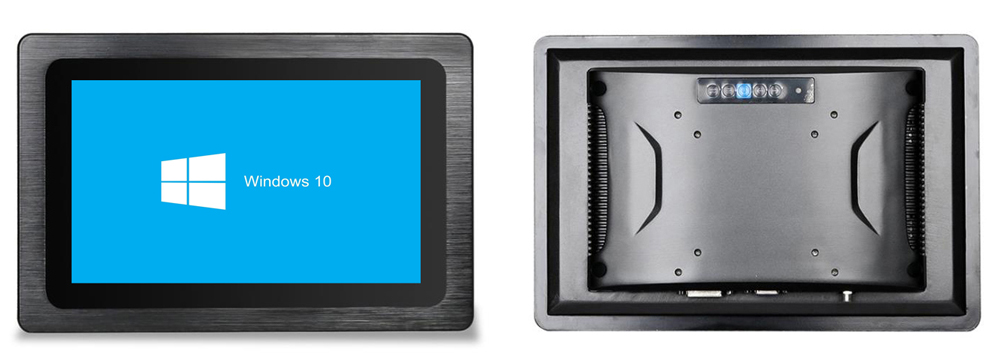

Pictures:
