19inch industrial touch screen monitor with Whole aluminum alloy casing

Click Here to copy , Send to a Friend

Product Description

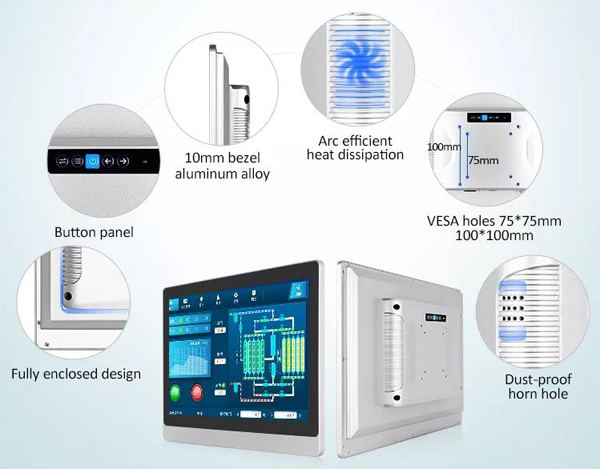

.Whole aluminum alloy casing,rounded corner frame design

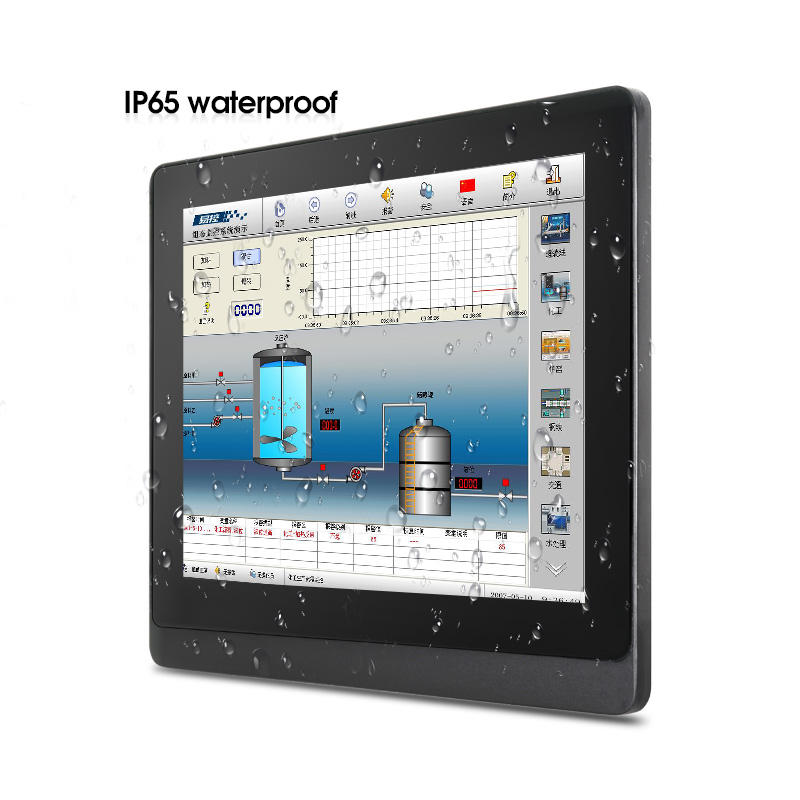

.True flat seamless,the waterproof IP65 front panel.
.Slim and thin design,Support 7x24hours working
.Fully enclosed design, dustproof for the whole machine
.5-wire touchscreen and capacitive touchscreen option
.High quality industrial LCD panel,Industrial grade components
.Work temperatures -10° to 60°
.VGA/HDMI/DVI/RJ45 interface

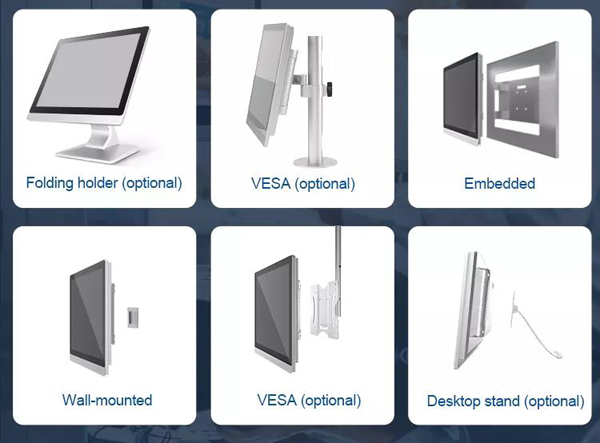

.Embedded/panel mount//VESA holes/Wall mount/Desktop installation
.Multi-language,Support Windows/Linux OS
.1000-1500nits High brightness option, direct sunlight readable.
.Anti-vibration, anti-electromagnetic interference, anti-surge, lightning protection
.Suitable for cabinets, production workshops, cutting machines, medical, military and other equipments

Available size:


Model number YTID-1901
LCD panel  Panel size 19inch
Resolution 1280×1024
Aspect ratio 4:3
Brightness 400cd/m2
Contrast ratio 1000:1
Display color 16.7M
View angle H170; V160
Response time  5ms
Backlight LED backlight
Life >50000h
Touchscreen  10 points Capacitive touchscreen (5-wire resistive touchscreen option)
Touch number >50 million
Touch way Pressure sensing
Touchscreen interface RJ45 interface
Other Power supply  DC12-24V/4A, AC100-240V/50-60Hz,
Work temperature -10 to 60
Storge temperature -20 to 70
Environment humidity 95% No condensation
Language Multi-language
Casing  Whole aluminum alloy casing
Interface 1xVGA,1xDVI, 1xHDMI,1xAudio I/O,1xRJ45(for touchscreen),1xDC power
Installation Embedded/panel mount/VESA holes/Wall mount/Desktop installation
Accessories Manual,Adapter, Power cord,VGA cable,
