17inch industrial touch screen monitor with the waterproof IP65 front panel

Click Here to copy , Send to a Friend
favorites

Product Description
 Feature:

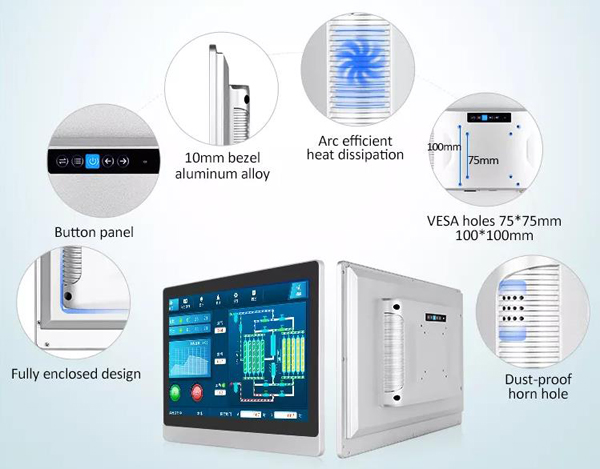

.Whole aluminum alloy casing,rounded corner frame design

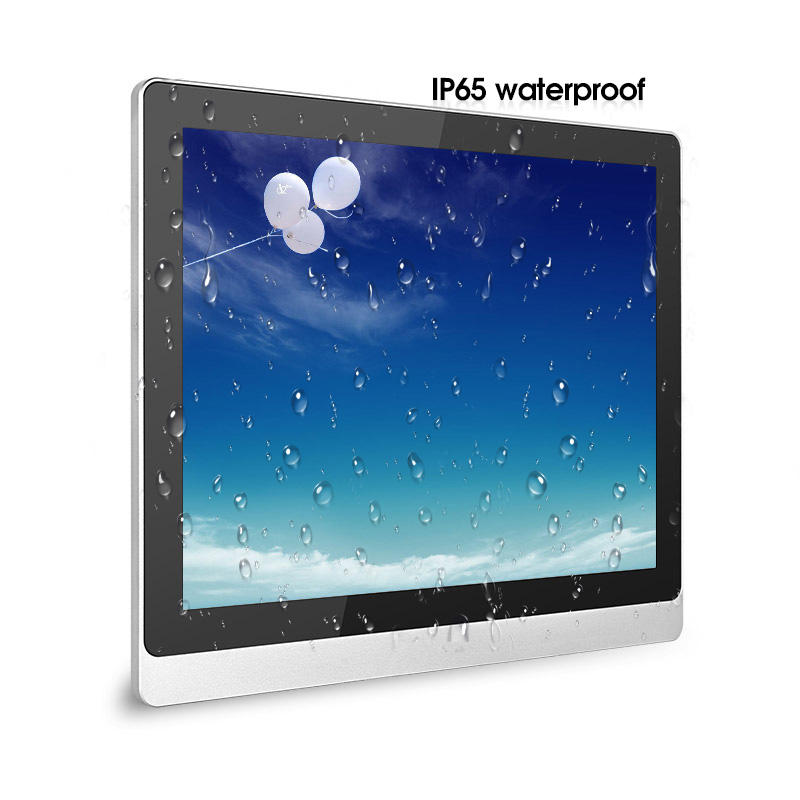

.True flat seamless,the waterproof IP65 front panel.
.Slim and thin design,Support 7x24hours working
.Fully enclosed design, dustproof for the whole machine
.5-wire touchscreen and capacitive touchscreen option
.High quality industrial LCD panel,Industrial grade components
.Work temperatures -10° to 60°
.VGA/HDMI/DVI/Audio I/O interface
.Embedded/panel mount//VESA holes/Wall mount/Desktop installation
.Multi-language,Support Windows/Linux OS
.1000-1500nits High brightness option, direct sunlight readable.
.Anti-vibration, anti-electromagnetic interference, anti-surge, lightning protection
.Suitable for cabinets, production workshops, cutting machines, medical, military and other equipments


Available size: 8"/10.1"/10.4"/11.6"/15"/15.6"/17"/17.3"/19"/21.5"option


Specification:
Model number YTID-1701
LCD panel  Panel size 17inch
Resolution 1280×1024
Aspect ratio 4:3
Brightness 400cd/m2
Contrast ratio 1000:1
Display color 16.7M
View angle H170; V160
Pixel pitch 0.264mm
Response time  5ms
Backlight LED backlight
Life >50000h
Touchscreen
Option
Touchscreen  10points Capacitive touchscreen (5-wire resistive touchscreen option)
Touch number >50 million
Touch way Pressure sensing
Touchscreen interface RJ45 interface
Other Power supply  DC12-24V/4A, AC100-240V/50-60Hz,
Work temperature -10 to 60
Storge temperature -20 to 70
Environment humidity 95% No condensation
Language Multi-language
Casing  Whole aluminum alloy casing

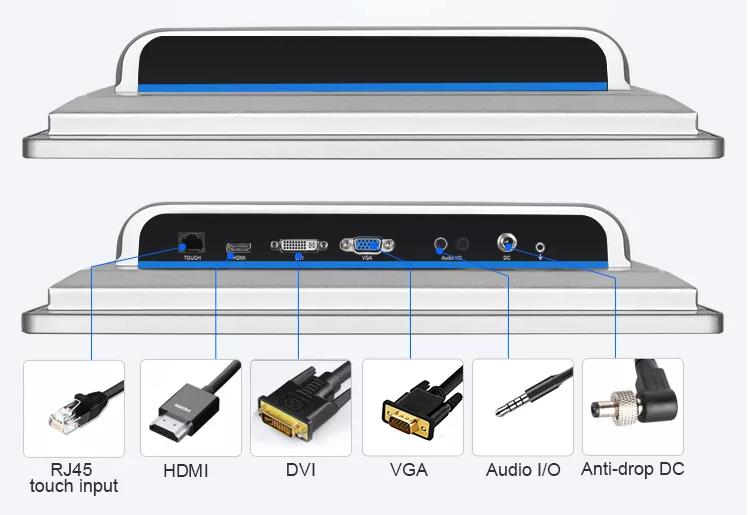

Interface 1xVGA,1xDVI, 1xHDMI,1xAudio I/O,1xRJ45(for touchscreen),1xDC power

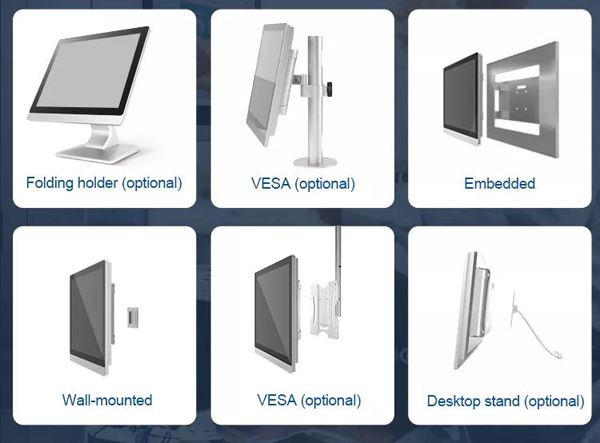

Installation Embedded/panel mount/VESA holes/Wall mount/Desktop installation
Accessories Manual,Adapter, Power cord,VGA cable

Pictures:
