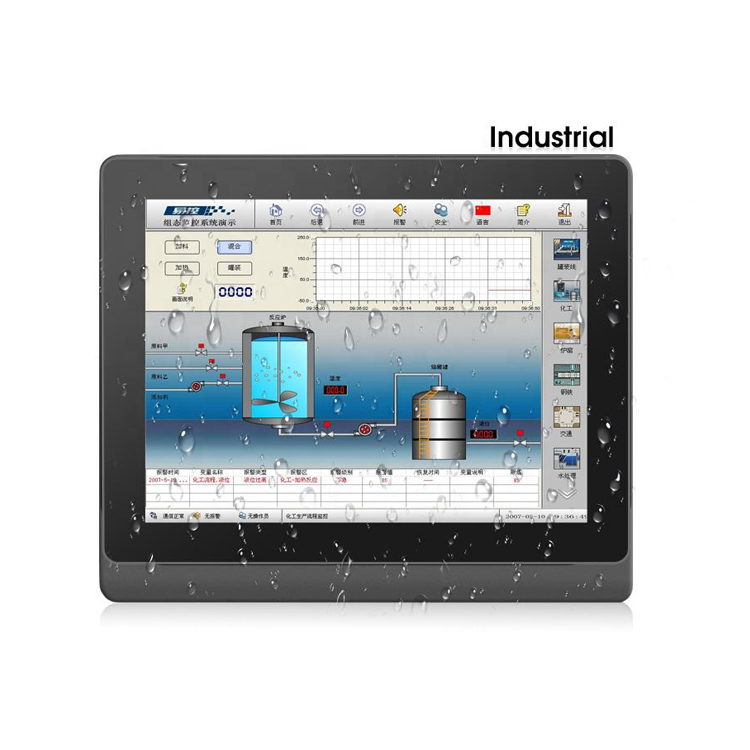

10.4inch industrial touch screen monitor with VGA/HDMI/DVI/Audio I/O interface

Click Here to copy , Send to a Friend
favorites

Product Description
 Feature:

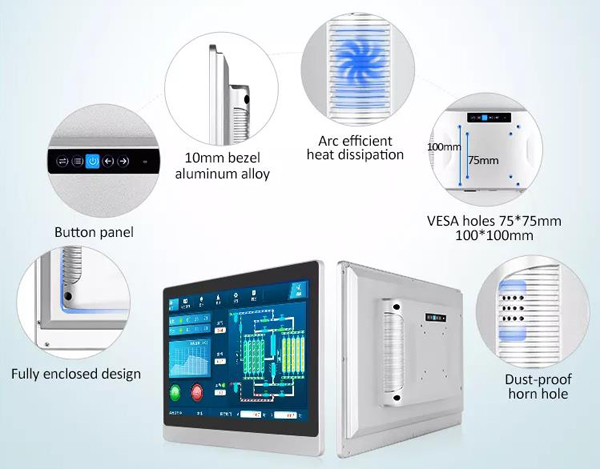

.Whole aluminum alloy casing,rounded corner frame design
.True flat seamless,the waterproof IP65 front panel.
.Slim and thin design,Support 7x24hours working
.Fully enclosed design, dustproof for the whole machine
.5-wire touchscreen and capacitive touchscreen option
.High quality industrial LCD panel,Industrial grade components
.Work temperatures -10° to 60°
.VGA/HDMI/DVI/Audio I/O interface

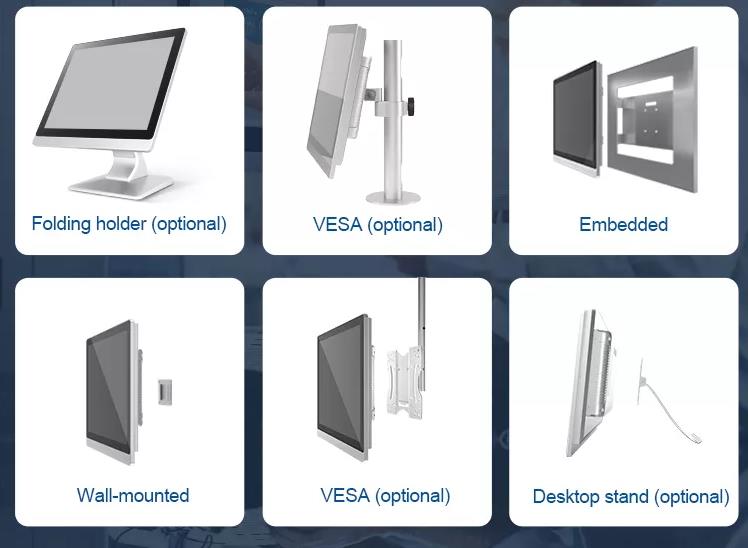

.Embedded/panel mount//VESA holes/Wall mount/Desktop installation
.Multi-language,Support Windows/Linux OS
.1000-1500nits High brightness option, direct sunlight readable.
.Anti-vibration, anti-electromagnetic interference, anti-surge, lightning protection
.Suitable for cabinets, production workshops, cutting machines, medical, military and other equipments


Available size: 10.1"/10.4"/11.6"/12"/15"/15.6"/17"/17.3"/19"/21.5"option


Specification:
Model number YTID-104A
LCD panel  Panel size 10.4inch
Resolution 1024×768/60HZ
Aspect ratio 4:3
Brightness 300cd/m2
Contrast ratio 800:1
Display color 16.7M
View angle H170; V160
Response time  6.5ms
Backlight LED backlight
Life >50000h
Touchscreen
Option
Touchscreen  10 points Capacitive touchscreen ( 5-wire resistive touchscreen option)
Touch number >50million
Touch way Pressure sensing
Touchscreen interface RJ45 interface
Other Power supply  DC12-24V/4A, AC100-240V/50-60Hz,
Power Consumption  10.5W
Standy power 2W
Work temperature -10 to 60
Storge temperature -20 to 70
Environment humidity 10%-90%(No condensation)
Language Multi-language
Dimension 259.4×224.7×50.8mm
Casing  Whole aluminum alloy casing
Interface 1xVGA,1xDVI, 1xHDMI,1xAudio I/O,1xRJ45(for touchscreen),1xDC power
Installation Embedded/panel mount/VESA holes/Wall mount installation
Accessories Manual,Adapter, Power cord,VGA cable
