10.1inch/11.6inch/12.1inch industrial touscreen android panel pc

Click Here to copy , Send to a Friend
favorites

Product Description
 Feature:

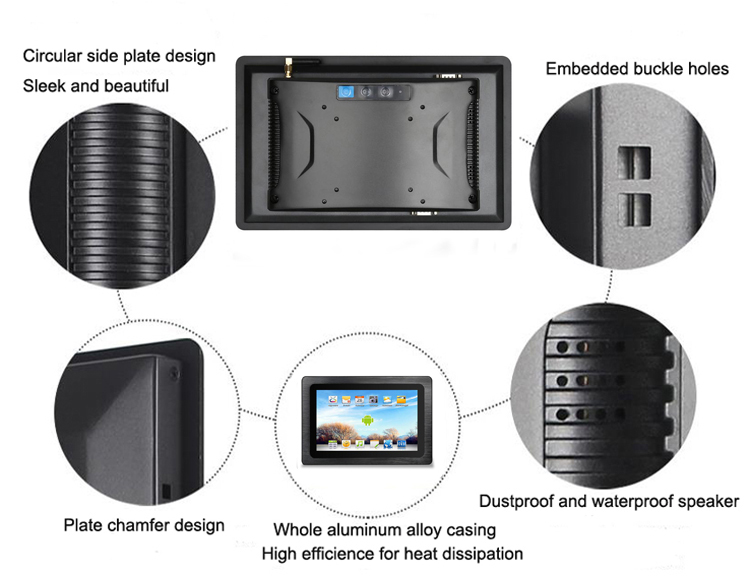

.Whole aluminum alloy casing, waterproof IP65 front panel
.True flat seamless,3mm ultra -thin front panel
.High efficiency heat dissipation, anti-interference, anti-corrosion, light weight
.Fully enclosed design, dustproof of the whole machine
.Industrial grade dust proof and waterproof speaker
.The design of circular arc heat dissipation structure
.High quality industrial LCD panel
.RK3288 CPU, Quad core,1.8GHz
.10points Capacitive  touchscreen  option
.With Android 7.1 OS
.Can work in harsh environments
.Embedded/Metal buckles/VESA holes/Wall-mounted/Desktop installation
.Wide operational temperature range, -10°C to +60°C.
.High brightness 1000nits to 1500nits option, direct sunlight readable.
.Designed for industrial automation, industrial control systems, outdoor kiosk etc.


Available Sizes:10.1"/10.4"/11.6"/12"/15"/15.6"/17"/17.3"/19"/21.5"/23.8"


Specification:
Model number YTPC-A101 YTPC-A1106 YTPC-A1201
LCD panel  Panel size 10.1inch 11.6inch 12.1inch
Resolution 1280x800 1920x1080 1280×800
Aspect ratio 16:10 16:9 16:10
Brightness 300cd/m2 300cd/m2 300cd/m2
Contrast ratio 800:1 800:1 1000:1
Display color 16.7M 16.7M 16.7M
View angle H170; V160 H170; V160 H170; V160
Response time  5ms 5ms 5ms
Blacklight LED backlight LED backlight LED backlight
Life >50000h >50000h >50000h
Android system CPU RK3288, Quad core,1.8GHz
RAM 2GB DDR3, 4GB option
Nand flash  8GB
Operating system  Android 7.1 OS
Built-in ROM 2KB EEPROM
Decoding resolution Support 1080P
Play mode Support timing, loop, insert and other play modes
Network Support LAN/WIFI/3G/4G
Picture format Support BMP,JPEG,PNG,GIF
RCT Implementation clock Support
Touchscreen
Option		 Touchscreen  10 points Capacitive touchscreen
Touch number >50 million
Touch way Pressure sensing
Other Power supply  DC12V/5A
Power Consumption  <25W
Work temperature -10 to 60
Storage temperature  -20 to 70
Relative humidity 5-85%(No condensation)
Casing  Whole aluminum alloy casing
Color Black/silvery option

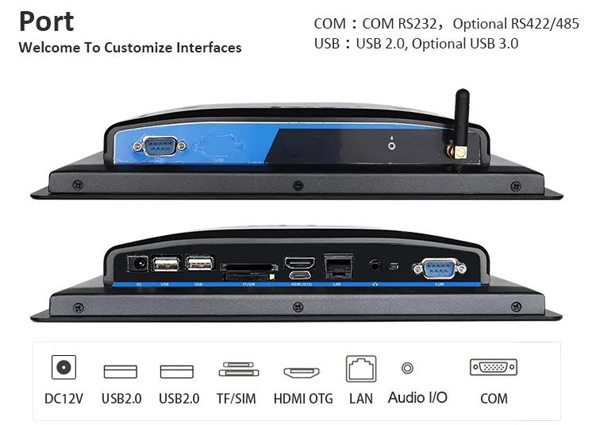

Interface 1xHDMI, 1xLAN,2xUSB2.0,2x COM,1xSD,1x SIM slot,1xAudio output,1xDC12V,1xWIFI
Installation Embedded/Panel mount/Metal buckles/VESA holes/Wall-mounted/Desktop installation
Accessories Manual, adapter,power cable, metal buckles

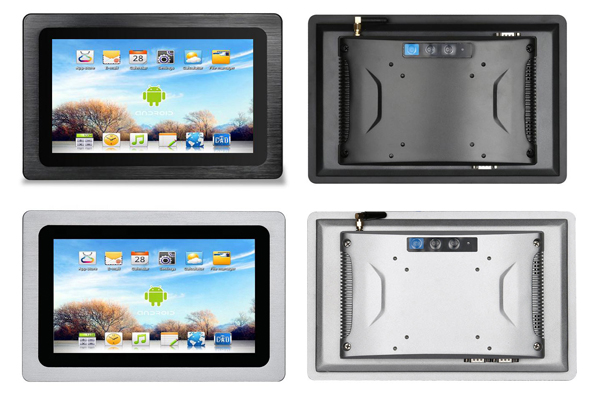

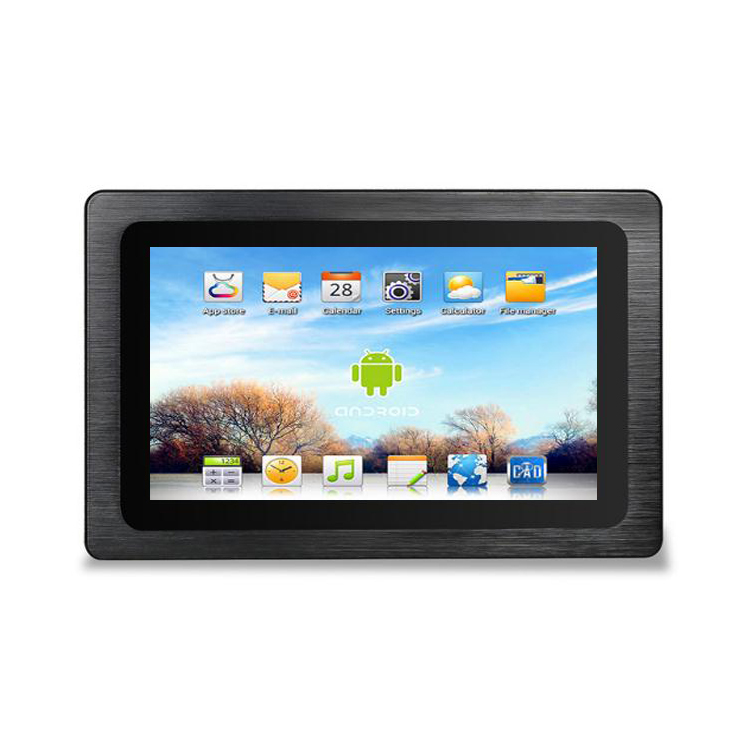

Pictures:
