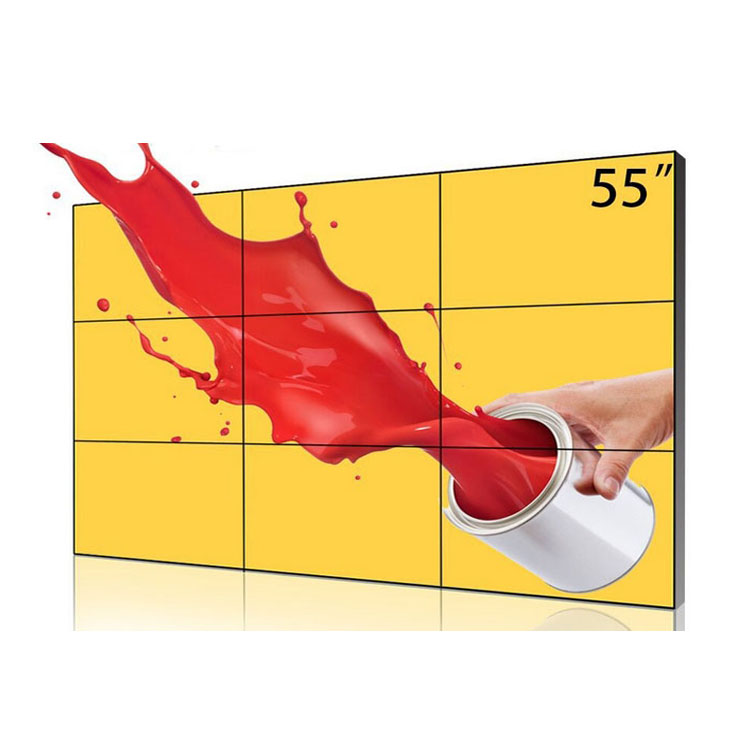

0.88mm bezel 500nits 55inch Ultra-narrow LCD Video Wall

Click Here to copy , Send to a Friend
favorites

Product Description
 Feature:
• Ultra-narrow frame design,No seamless splicing photo qualit.
• Frame compensation function | restore the true picture.
• Built-in splicing function | Maximum 15 units x 15 units stitching.
• Support multi -signal interfaces.
• Many kinds of splicing application.
• LED back light, Effectively prevent the screen central and edge luminance difference
• High resolution, contrast ration, wide viewing angle Ensure highly clear picture quality and real
• Fast response time | Ensure pictures smooth.
• 6 axis color adjustment function,The color is more vivid.
• Dynamic optimization eliminate noise.
• Intelligent cooling system.
• Using high-temperature components.
• Adjust very lcd monitor to keep same color.
• Remote control, simple operation.
• Can continually work in 24 hours /7 days ,stable operation.


Specification:
Display Model No. LVW5508
LCD Panel Industrial LCD Panel, LG DID panel
Size(inch) 55inch
Resolution 1920x1080
Brightness 500cd/m2, 700cd/m2 option
View angle H178, V178
Color 16.7M
Contrast 1200:1
Response Time 8ms
Spliced Seam 0.88mm(Active to Active)
Backlight LED backlight
I/O Input port VGAx1,DVIx1,HDMIx1,BNCx1,RJ45(for RS232 IN)x1,Debug IRx1
Output port RJ45(for RS232 OUT)x2, BNCx1
Control mode Remote control  Option
RS232 In/Out 1/2
Power Input AC100 to 240V  50/60  HZ
Power Consumption 280W
Operation environment Working Temperature 0 to 50
Storage Temperature -20 to 60
Working Humidity 20 to 95%(No condensation)
Machine OSD Language Multi-language
Color Black
Casing Metal casing
Installation Wall-mounted/Floor-standing/Cabinet/Embedded optional
Packing Hard Paper box with wooden box
Standard Accessoires User Manual,Power cable,Custom hook, Handle,Remote controller option
Optional Accessoires Matrix/Video Wall processor option
Wall-mounted bracket/Floor standing bracket/Floor standing Cabinet Option
HDMI cable, Lan cable,USB to Serial port cable,Serial to RJ45 port
