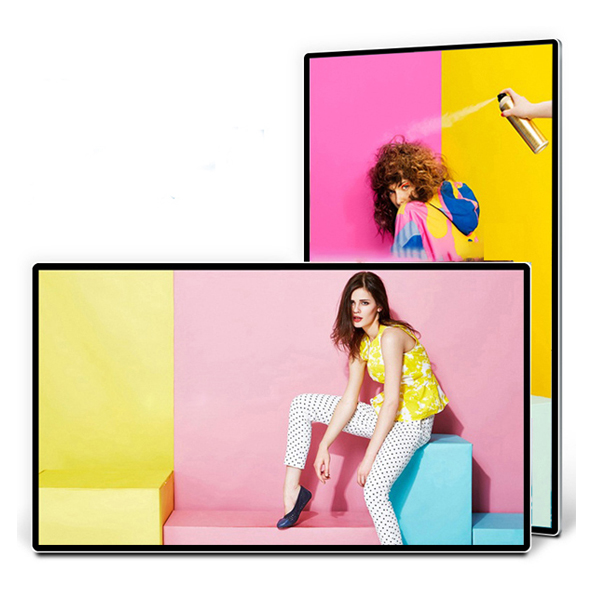

32inch to 65inch wall mount digital signage

Click Here to copy , Send to a Friend
favorites

Product Description
Feature:
· Rounded corner design, slim, elegant and fashion.
· Aluminum bezel, wiredrawing treatment.
· Theft-proof lock for protecting memory card.
· AG or AR glass option for protecting the LCD screen.
· Standard VESA holes and console holes for wall mounting.
· Standalone version support SD card, USB memory.
· Network version support RJ45 and WIFI, can be group managed via software.
· Support all video, audio and picture formats.
· Infrared touch screen/capacitive touchscreen option


Available Sizes: 32" 43" 49" 55" 65" 75" 86" 98"


Specification:
Model No. WMDS-3201 WMDS-4301 WMDS-4901 WMDS-5501
LCD panel Panel Size 32" 43" 49" 55"
Pixel numbers  1920x1080 1920x1080 1920x1080 1920x1080
Brightness  400cd/m2 400cd/m2 400cd/m2 400cd/m2
Contrast Ratio  1400:1 1200:1 3500:1 4000:1
Viewing Angle  178° (H)/178° (V) 178° (H)/178° (V) 178° (H)/178° (V) 178° (H)/178° (V)
Response Time 5ms 5ms 5ms 5ms
Colors  16.7 M 16.7 M 16.7 M 16.7 M
Life time above50000h above50000h above50000h above50000h
Standalone version Plug in SD card / U-disk to play the advertisement
Interface USB, SD card
Android version
(network)		 CPU RK3288,  Quad core,1.8GHz
Memory(RAM) 2GB DDR3
Nand  flash(ROM) 8GB
Operation system Android 7.1 OS
Interface USB2.0/RJ45 /HDMI/SD
Network Support Wifi/RJ45/external 5G
Windows version
(network)		 Standard: Intel Celeron1037U,Dual core,1.8GHz (Intel i3/i5/i7 option)
RAM 4GB DDR3,8GB DDR3 option
SDD 128GB SDD, 256GB option
Operation system Support Windows7/8/10 OS
Interface USB2.0/RJ45 /HDMI/VGA
Network Support Wifi/RJ45/external 5G
The clients can choose Standalone version or android version or windows version.
Speakers Built-in 2*5W
Touchscreen (optional) 10points Infrared touch screen/capacitive touchscreen option
Display formats Support formats Video: MPEG1, MEPG3, MEPG4, AVI, MP3
Photo: JPG, JEPG, BMP, PNG, GIF
Display mode Support full screen / multi-screen
Videos, photos, scroll texts auto detect, play and loop
Operating condition Temperature 0°C to 50°C (Operating)
-10°C to 60°C (Storage )
Humidity 10% RH to 90% RH (Operating)
10% RH to 90% RH (Storage)
Power Input Voltage 100-240V AC 100-240V AC 100-240V AC 100-240V AC
Operation 60W 120W 165W 180W
Accessories remote control(Standalone version), manual, power cable, key, wall mount bracket, Release information software option
Mount/installation Wall mount
