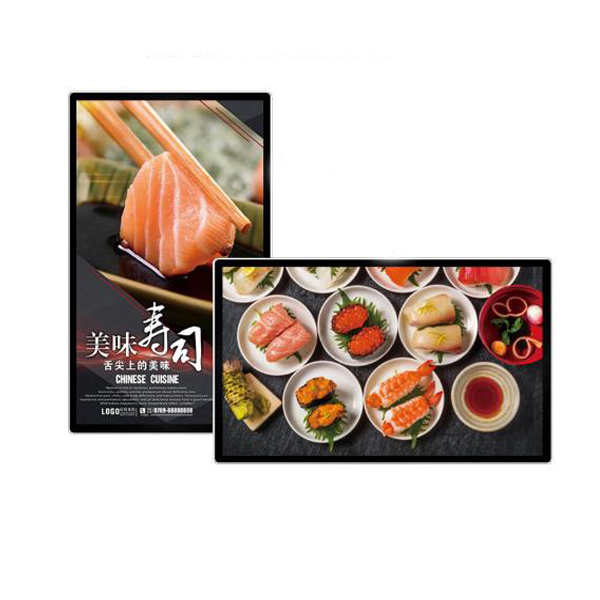

15.6inch to 23.8inch Digital signage
Product Description
Feature:
· Rounded corner design, slim, elegant and fashion.
· Aluminum bezel, wiredrawing treatment.
· Theft-proof lock for protecting memory card.
· AG or AR glass for protecting the LCD screen.
· Standard VESA holes and console holes for wall mounting.
· Single version support SD card, USB memory.
· Network version support LAN and WIFI, can be group managed via software.
· Support all video, audio and picture formats.
· 10points Capacitive touchscreen option.
Available Sizes: 15.6" 18.5" 21.5" 23.8"
Available Sizes: 15.6" 18.5" 21.5" 23.8"
Specification:
| Model No. | WMDS-1506 | WMDS-1805 | WMDS-2105 | WMDS-2308 | |
| LCD panel | Panel Size | 15.6" | 18.5" | 21.5" | 23.8" |
| Pixel numbers | 1366x768 | 1920x1080 | 1920x1080 | 1920x1080 | |
| Brightness | 300cd/m2 | 300cd/m2 | 300cd/m2 | 300cd/m2 | |
| Contrast Ratio | 500:1 | 800:1 | 1000:1 | 1000:1 | |
| Viewing Angle | 178° (H)/178° (V) | 178° (H)/178° (V) | 170° (H)/160° (V) | 170° (H)/160° (V) | |
| Response Time | 5ms | 5ms | 5ms | 5ms | |
| Colors | 16.7 M | 16.7 M | 16.7M | 16.7M | |
| Life time | Above50000h | Above50000h | Above50000h | Above50000h | |
| Standalone version | Plug in SD card/U-disk to play the advertisement | ||||
| Interface | USB, SD card | ||||
| Android version | CPU | RK3288, Quad core,1.8GHz | |||
| Memory(RAM) | 2GB DDR3 | ||||
| Nand flash | 8GB | ||||
| Operation system | Android 7.1 OS | ||||
| Interface | USB2.0/RJ45 /HDMI/SD | ||||
| Network | Support WlanWifi/RJ45/External 5G | ||||
| Windows version | CPU | Intel i3CPU,Dual core,2.GHz (Intel i5/i7 CPU option) | |||
| RAM | 4GB | ||||
| Hard disk | 128GB SDD, 256GB option | ||||
| Operation system | Support Windows7/windows8/windows10 OS | ||||
| Interface | VGA/HDMI/USB/RJ45 interface | ||||
| Network | Support Wlan/Wifi/RJ45/external 5G | ||||
| The clients can choose standalone version or android version or windows version. Android version or windows version, digital signage can be add touchscreen. | |||||
| Touchscreen (optional) | 10points capacitive touchscreen option | ||||
| Speakers | 2x5W | 2x5W | 2x5W | 2x5W | |
| Display formats | Support formats | Video: MPEG1, MEPG3, MEPG4, AVI, MP3 | |||
| Photo: JPG, JEPG, BMP, PNG, GIF | |||||
| Display mode | Support full screen / multi-screen | ||||
| Videos, photos, scroll texts auto detect, play and loop | |||||
| Operating condition | Temperature | 0°C to 50°C (Operating) | |||
| -10°C to 60°C (Storage ) | |||||
| Humidity | 10% RH to 90% RH (Operating) | ||||
| 10% RH to 90% RH (Storage) | |||||
| Power | Input Voltage | 100-240V AC | 100-240V AC | 100-240V AC | 100-240V AC |
| Accessories | Power cable, Wall mount bracket, Manual,Release information software(option) | ||||
| Mount/installation | Wall mount | ||||
