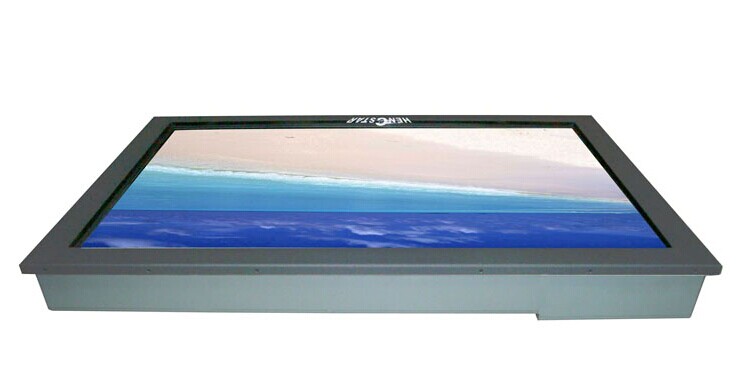

26inch Industrial Open frame monitor
Product Description
Feature:
26'' industrial grade TFT LCD panel
High brightness & good image quality
Long lifetime up to 50,000 hours
Wide operational temperature range industrial LCD controller board
High environmental performance
Low power consumption
Minimum EMI emission
Touchscreen optional
OEM available, the back housing is highly customizableon
Specification:
|
Model No. |
OP-2601 |
|
|
LCD panel |
Size/Aspect ratio |
26''/16:9 |
|
Pixel numbers |
1366(H)*768(V) |
|
|
Brightness |
300 cd/m2 |
|
|
Contrast Ratio |
1000:1 |
|
|
Viewing Angle |
170° (H)/160° (V) |
|
|
Colors |
16.7M |
|
|
Input terminals |
PC signal |
D-Sub15 pin*1 |
|
Power plug |
12 VDC jack |
|
|
OSD Control |
Menu/Select,Auto,Up,Down,Power |
|
|
Operating condition |
Temperature |
0°C to 50°C (Operating) |
|
-20°C to 70°C (Storage ) |
||
|
Humidity |
10% RH to 90% RH (Operating) |
|
|
10% RH to 90% RH (Storage) |
||
|
Power & |
Input Voltage |
12V DC, 100~240V AC, 50/60Hz |
|
Operation |
80 watt |
|
|
Stand-by |
‹5 watt |
|
|
Weight |
N.W./G.W. |
8.5Kgs/9.5Kgs |
|
Mount/installation |
VESA mount:100*100mm/Flanges |
|
|
Optional |
Touch screen(Resistive,Capacitive) |
|
|
PC Mainboard |
||
|
Speakers |
||
|
Protect glass(Screen protected,double coating) |
||
