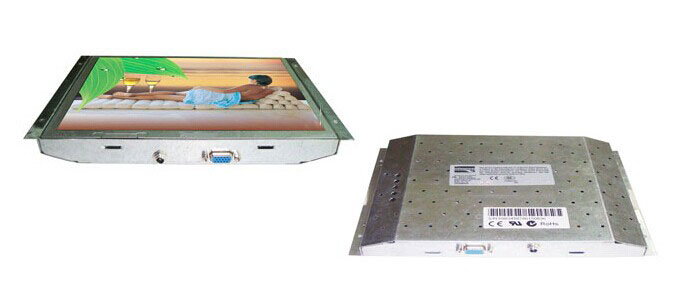

10.4inch Open frame monitor

Click Here to copy , Send to a Friend
favorites

Product Description

Feature:
10.4'' industrial grade TFT LCD panel
High brightness & good image quality
Long lifetime up to 50,000 hours
Wide operational temperature range industrial LCD controller board
High environmental performance
Low power consumption
Minimum EMI emission
Touchscreen optional
OEM available, the back housing is highly customizableon




Specification:


Model No.

OP-104

LCD panel

Size/Aspect ratio

10.4''/4:3

Pixel numbers

800(H)*600(V)

Brightness

230 cd/m2

Contrast Ratio

500:1

Viewing Angle

160° (H)/130° (V)

Colors

16.2M

Input terminals

PC signal

D-Sub15 pin*1

PC audio

Stereo headphone jack*1

Power plug

12 VDC jack

OSD Control

Menu/Select,Auto,Up,Down,Power

Operating condition

Temperature

-20°C to 50°C (Operating)

-30°C to 85°C (Storage )

Humidity

10% RH to 90% RH (Operating)

10% RH to 90% RH (Storage)

Power &
Power rating
(support DPMS)

Input Voltage

12V DC

Operation

‹16 watt

Stand-by

‹5 watt

Weight

N.W./G.W.

1.0Kgs/1.5Kgs

Mount/installation

VESA mount:75*75mm/Flanges

Optional

Touch screen(Resistive,Capacitive)

PC Mainboard

Speakers

Protect glass(Screen protected,double coating)
