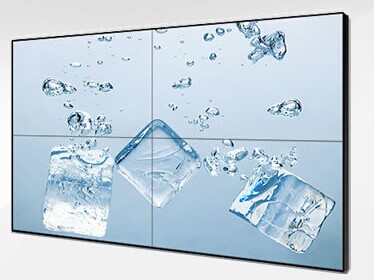

55inch Super Narrow Bezel Video Wall with 700cd/m2 Brightness and 3.5mm ultra-narrow bezel

Click Here to copy , Send to a Friend
favorites

Product Description
Feature:
• 3.5mm ultra-narrow bezel, ideal for display applications
• High brightness, high contrast, wide viewing angle
• Built 4Kx2K display controller
• ST's unique color performance, dark balance adjustment function
• 6-axis color adjustment function to attain the perfect picture presented
• Black and white fine display mode
• Gamma Curve Correction effectively enhance display
• 3D digital signal
• 4DG all color adjustment technology
• Intelligent cooling system
• A variety of mosaic using a variety of display modes
• Supports a variety of signal interfaces
• DP digital signal access, support DP loop-through
• Supports multi-stream (multi-streaming), only one data line can transport multiple independent uncompressed video and audio streams
• Support for high-speed bi-directional data transfer, USB 2.0 or Ethernet can transmit data in a standard DP data lines.
• Audio technology enhancements: support for audio and video, multiple audio channels, simultaneous multiple audio receiver assist devices.
• supports daisy-chain links (DDM, Direct Drive), allows DP input display data input device replication, and then through another DP output to other
display devices.
• Remote control operation is simple
• 24-hour / 365 days of continuous work stable
• intelligent temperature sensor system, energy saving and environmental protection
• Application Industry
Widely used in shopping malls, transportation hubs, broadcasting studio, meeting showrooms, securities trading floor, meteorological centers,
museums and other industries.


Specification:

Panel spec

Model No.

LVW5502H

LCD Panel

Industrial LCD Panel

Size(inch)

55inch

Active Area(mm)

1209.6x680.4

Resolution

1920×1080

Color

16.7M

Splicing Seam

≤3.5mm(gap between two panels)

Brightness

700cd/㎡

Contrast

4000:1

View angle

H178°;V178°

Response Time

6ms

I/O

Input

Audio X1,VGA  X1,Display  Port  X1,DVI X1,HDMI  X1,RJ45 X1

Output

RJ45 X1  ,Display Port  X1

Power

Input

AC100～240V  50/60  HZ

Power Consumption(max)

≤150W

Power consumption(standby mode)

≤0.5W

Machine

Machine size(mm)

1213.4x684.2x100.35

Installation

wall mount、stand cabinet(optional)

Surface

Color: black; Packing: Hard Paper box;

Net weight

36KG

Operation environment

Life time

≥60000 hours

Storage Temperature

-20ºC～60ºC

Working Temperature

0℃～50℃

Working Humidity

10～90%RH

Others

OSD Language

Chinese/English

Control mode

Button, IR, Remote control

Certificate

CCC/CE/ROHS/Energy Saving
